AIR CLEANER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]

Home  id0113hf802500

Note

•  Do not remove the fresh-air duct valve actuator from the fresh-air duct because it cannot be reused once removed.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Open the engine cover. (See ENGINE COVER OPEN/CLOSE [SKYACTIV-X 2.0].)

3.  Remove the left wall (front). (See SIDE WALL REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

4.  Disconnect the MAF sensor/IAT sensor No.1 connector. (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

5.  Remove using the procedure shown in the figure.

6.  Install in the reverse order of removal.

Vehicles with fresh-air duct valve actuator

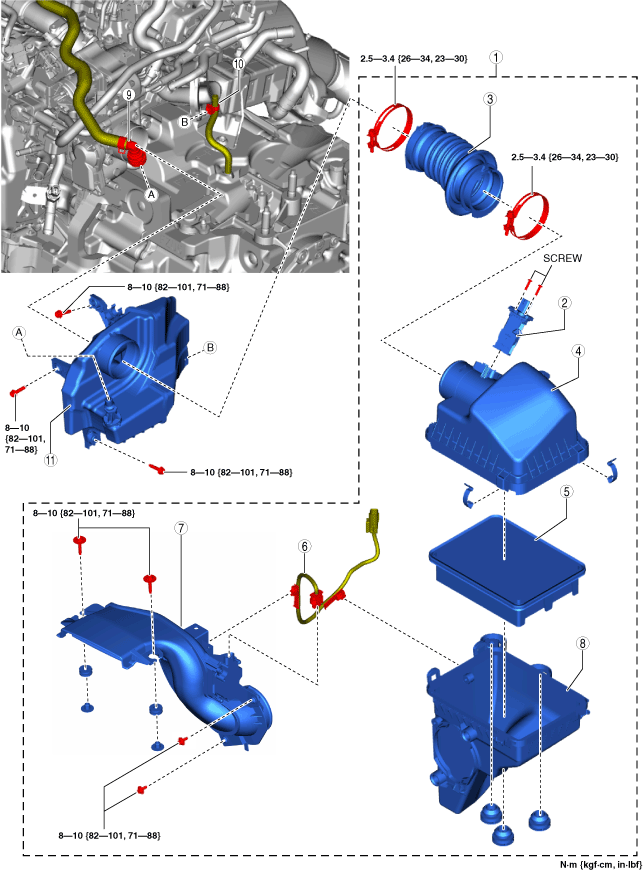

am3zzw00035644

1	Air cleaner component
2	MAF/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3	Air hose (See Air Hose Installation Note.)
4	Air cleaner cover (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
5	Air cleaner element (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6	Fresh-air duct valve actuator connector
7	Fresh-air duct (See Fresh-air Duct Removal Note.)
8	Air cleaner case (See Air Cleaner Case Installation Note.)
9	Quick connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
10	Breather hose (ATX)
11	Resonance chamber

Vehicles without fresh-air duct valve actuator

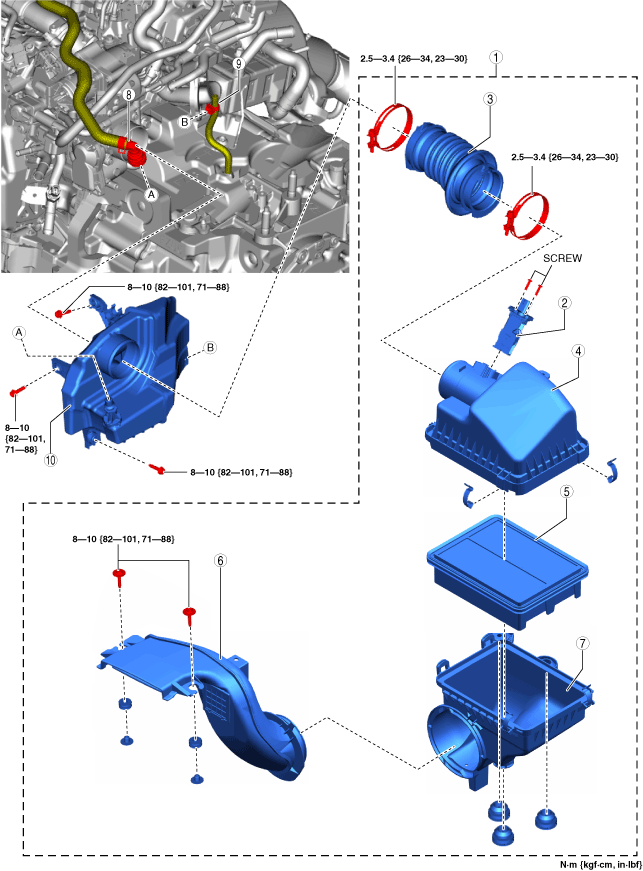

ac30zw00005245

1	Air cleaner component
2	MAF/IAT sensor No.1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
3	Air hose (See Air Hose Installation Note.)
4	Air cleaner cover (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
5	Air cleaner element (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
6	Fresh-air duct (See Fresh-air Duct Removal Note.)
7	Air cleaner case (See Air Cleaner Case Installation Note.)
8	Quick connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
9	Breather hose (ATX)
10	Resonance chamber

Fresh-air Duct Removal Note

1.  Remove the fresh-air duct installation bolt.

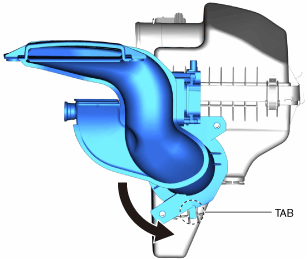

2.  Detach the tab shown in the figure and move the fresh-air duct in the direction of the arrow.

am3zzw00035645

3.  Remove the fresh-air duct.

Air Cleaner Case Installation Note

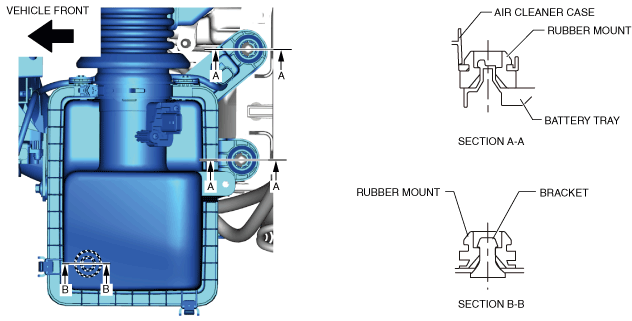

1.  Install the air cleaner case as shown in the figure.

am3zzw00035646

2.  Move the air cleaner case up and down to verify that the air cleaner case is installed to the battery tray and the bracket correctly.

Air Hose Installation Note

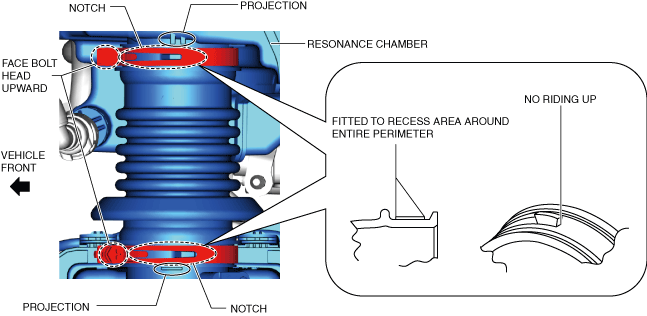

1.  Install the air hose by pushing it until it contacts the projections as shown in the figure.

am3zzw00035647
