CHECK VALVE INSPECTION [SKYACTIV-D 1.8]

CHECK VALVE INSPECTION [SKYACTIV-D 1.8]

 id0113q9082800


Airflow Inspection

1.  Remove the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

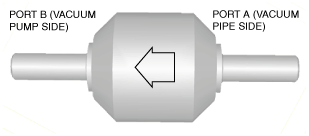

2.  Verify that there is airflow through port B when pressure is applied from port A.

am2zzw00012024

•  If there is no airflow, replace the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Verify that there is no airflow through port A when pressure is applied from port B.

•  If there is airflow, replace the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
