TURBOCHARGER SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.8]
id0113q9702700
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
3. Disconnect the A/F sensor connector. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

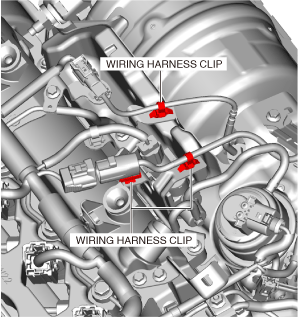

4. Disconnect the wiring harness clips shown in the figure.
ac3wzw00004671
|

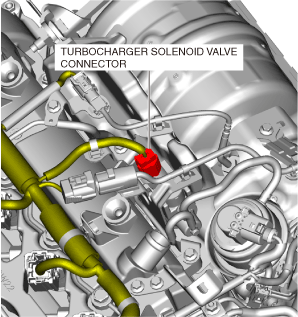

5. Disconnect the turbocharger solenoid valve connector.
ac3wzw00004672
|

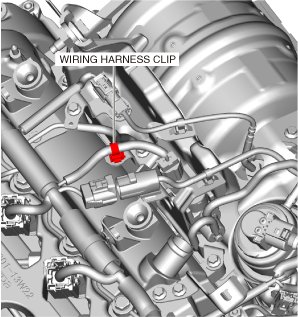

6. Disconnect the wiring harness clips shown in the figure.
ac3wzw00004673
|

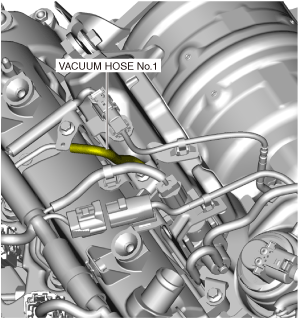

7. Disconnect the vacuum hose No.1 shown in the figure. (See Vacuum Hose No.1 Installation Note.)
ac3wzw00004674
|

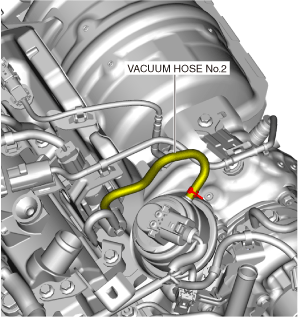

8. Disconnect the vacuum hose No.2 shown in the figure. (See Vacuum Hose No.2 Installation Note.)
ac3wzw00004675
|

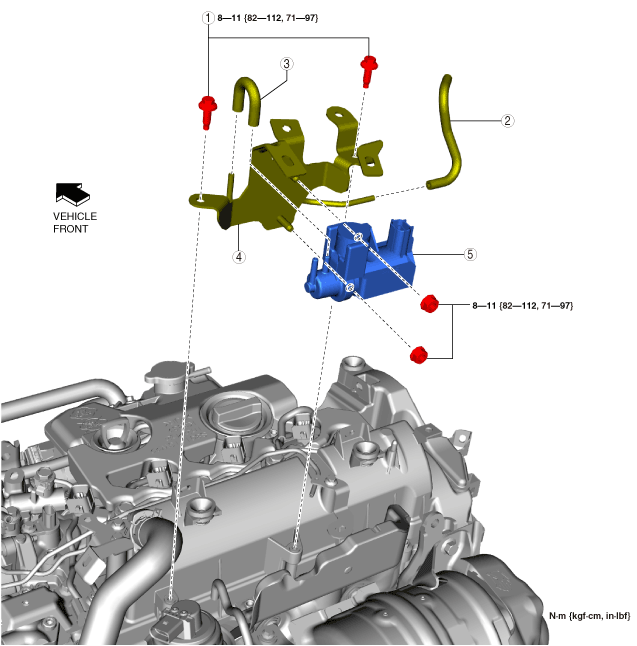

9. Remove in the order shown in the figure.
ac3wzw00005287
|
|
1
|
Turbocharger solenoid valve bracket bolt
|
|
2
|
Vacuum hose No.1
|
|
3
|
Vacuum hose No.3
|
|
4
|
Turbocharger solenoid valve bracket
|
|
5
|
Turbocharger solenoid valve
|
Vacuum Hose No.3 Installation Note
1. Install vacuum hose No.3 as shown in the figure.
Turbocharger solenoid valve side
ac3wzw00004677
|
Turbocharger solenoid valve bracket side
ac3wzw00004678
|
Vacuum Hose No.2 Installation Note
1. Install vacuum hose No.2 as shown in the figure.
ac3wzw00001369
|
Vacuum Hose No.1 Installation Note
1. Install vacuum hose No.1 as shown in the figure.
Turbocharger solenoid valve bracket side
ac3wzw00004678
|
vacuum pipe side
ac3wzw00004679
|
