GLOW PLUG CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-D 1.8]
id0113q9705400
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the front deflector (LH). (See DEFLECTOR REMOVAL/INSTALLATION.)

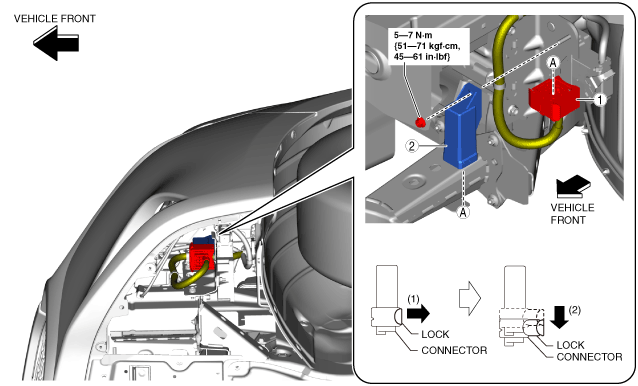

3. Remove in the order shown in the figure.
am3zzw00028739
|
|
1
|
Glow control module connector
|
|
2
|
Glow control module
|
4. Install in the reverse order of removal.
