PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))]
id0116u1804300
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
3. Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)
4. Disconnect the high pressure fuel pump connector.

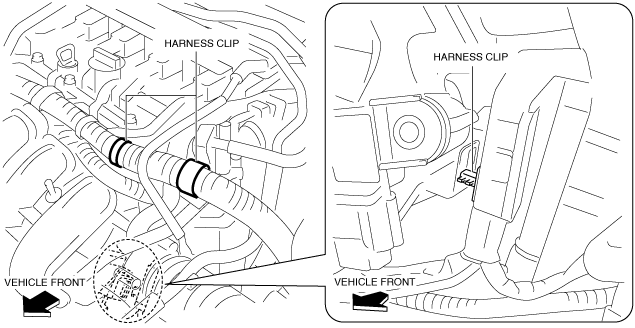

5. Disconnect the harness clip as shown in the figure.
am6xuw00006511
|

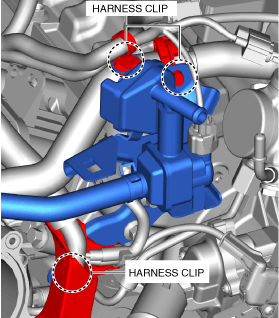

6. Disconnect the harness clip as shown in the figure.
ac5uuw00009283
|
7. Disconnect the coolant control valve connector.(See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

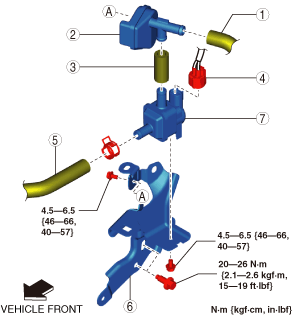

8. Remove in the order indicated in the table.
am6xuw00012946
|
|
1
|
Evaporative hose No.1
|
|
2
|
Catch tank
|
|
3
|
Evaporative hose No.2
|
|
4
|
Purge solenoid valve connector
|
|
5
|
Evaporative hose No.3
|
|
6
|
Purge solenoid valve bracket
|
|
7
|
Purge solenoid valve
|
9. Install in the reverse order of removal.

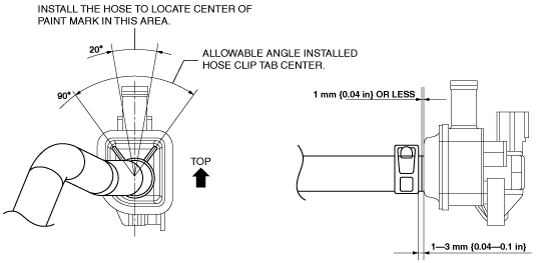

Evaporative Hose No.3 Installation Note
1. Install the evaporative hose No.3 as shown in the figure.
am6xuw00006513
|

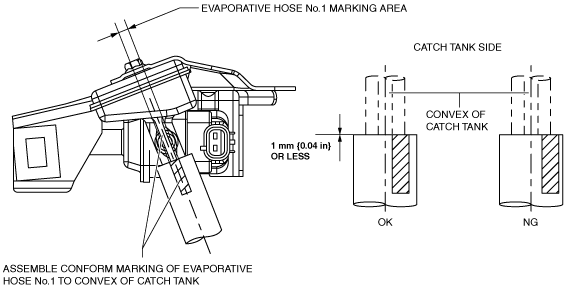

Evaporative Hose No.1 Installation Note
1. Install the evaporative hose No.1 as shown in the figure.
am6xuw00007941
|
