DRIVE SELECTION SWITCH INSPECTION [(E)]

Home  id0121001001b1

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION)

3.  Measure the resistance between drive selection switch terminals B and C using a tester.

•  If not within the specification, replace the drive selection switch. (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION.)

L.H.D.

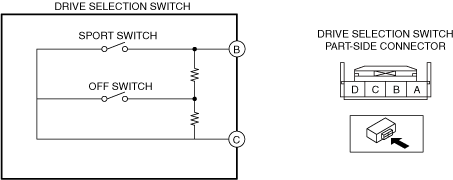

am3zzw00034780

Switch condition	Resistance (ohm)
SPORT switch held at on	Approx. 0
OFF switch held at on	Approx. 470
any switch not pressed	Approx. 2,670

R.H.D.

am3zzw00036834

Switch condition	Resistance (ohm)
OFF switch held at on	Approx. 0
SPORT switch held at on	Approx. 470
any switch not pressed	Approx. 2,670
