EGR TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8]
id0140s1499900
Resistance Inspection
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the EGR temperature sensor. (See EGR TEMPERATURE SENSOR INSPECTION [SKYACTIV-D 1.8].)

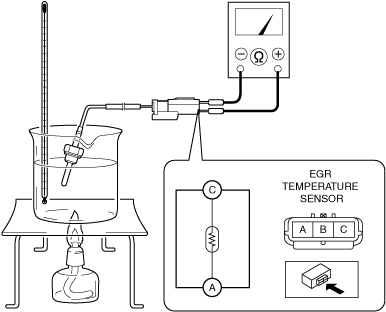

3. Place the detection part of the EGR temperature sensor in the water and while gradually increasing the water temperature, measure the resistance between EGR temperature sensor terminals A and C.
atsvuw00000010
|

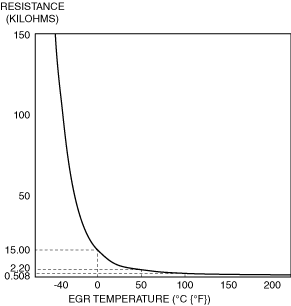

Specification (Reference)
|
Water temperature (°C {°F}) |
Resistance (Kilohms) |
|---|---|
|
0 {32}
|
Approx. 15.00
|
|
50 {122}
|
Approx. 2.20
|
|
100 {212}
|
Approx. 0.508
|
