MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 1.8]

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION [SKYACTIV-D 1.8]

 id0140s1800900

Note
•  Because the MAP sensor is integrated with the boost air temperature sensor, replacing the MAP sensor includes replacement of the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

Visual inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

3.  Visually inspect the MAP sensor/boost air temperature sensor for the following malfunction:

•  Damage, cracks, dirt
―  If there is any malfunction, repair or replace the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)


Voltage inspection

1.  Switch the ignition ON (engine off).

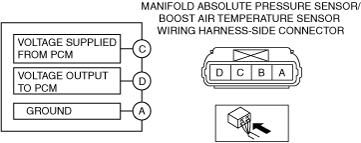

2.  Measure the voltage at the MAP sensor/boost air temperature sensor terminal D.

atsvuw00000026

•  If the voltage is within the specification, go to the next step.
•  If the voltage is not within the specification, replace the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
Specification
Approx. 1.6 V

3.  Connect the M-MDS to the DLC-2.

4.  Access the PID/DATA monitor item INTK_MAPA using the M-MDS. (See PID/DATA MONITOR INSPECTION.)(See PID/DATA MONITOR TABLE [PCM (SKYACTIV-D)].)

5.  Start the engine.

6.  Measure the voltage at the MAP sensor/boost air temperature sensor terminal D when the INTK_MAPA PID increases.

•  If the voltage does not increase, replace the MAP sensor/boost air temperature sensor. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)

Specification (Reference)

am2zzw00011421
