DTC C100B:19 [ELECTRONICALLY CONTROLLED BRAKE UNIT]

id0402c6006200

Outline

System malfunction location

Electric parking brake motor gear unit

Detection condition

•  The electronically controlled brake unit detects excess current in the transistor for the electric parking brake motor gear unit drive.

Fail-safe

Refer to “DTC Table” and “Fail-safe Function Malfunction Contents Table”. (See DTC TABLE [ELECTRONICALLY CONTROLLED BRAKE UNIT].)

Possible cause

•  Electric parking brake motor gear unit (LH) connector or terminal malfunction

•  Electric parking brake motor gear unit (RH) connector or terminal malfunction

•  Electronically controlled brake unit connector or terminals malfunction

•  Short to ground in electric parking brake motor gear unit (LH) signal circuit

•  Short to ground in electric parking brake motor gear unit (RH) signal circuit

•  Short to power supply in electric parking brake motor gear unit (LH) signal circuit

•  Short to power supply in electric parking brake motor gear unit (RH) signal circuit

•  Short circuit in electric parking brake motor gear unit (LH) signal circuit

•  Short circuit in electric parking brake motor gear unit (RH) signal circuit

•  Electric parking brake motor gear unit (LH) malfunction

•  Electric parking brake motor gear unit (RH) malfunction

•  Electronically controlled brake unit malfunction

System malfunction location	Electric parking brake motor gear unit
Detection condition	• The electronically controlled brake unit detects excess current in the transistor for the electric parking brake motor gear unit drive.
Fail-safe	Refer to “DTC Table” and “Fail-safe Function Malfunction Contents Table”. (See DTC TABLE [ELECTRONICALLY CONTROLLED BRAKE UNIT].)
Possible cause	• Electric parking brake motor gear unit (LH) connector or terminal malfunction • Electric parking brake motor gear unit (RH) connector or terminal malfunction • Electronically controlled brake unit connector or terminals malfunction • Short to ground in electric parking brake motor gear unit (LH) signal circuit • Short to ground in electric parking brake motor gear unit (RH) signal circuit • Short to power supply in electric parking brake motor gear unit (LH) signal circuit • Short to power supply in electric parking brake motor gear unit (RH) signal circuit • Short circuit in electric parking brake motor gear unit (LH) signal circuit • Short circuit in electric parking brake motor gear unit (RH) signal circuit • Electric parking brake motor gear unit (LH) malfunction • Electric parking brake motor gear unit (RH) malfunction • Electronically controlled brake unit malfunction

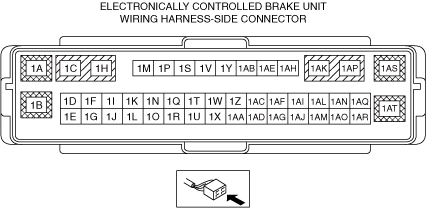

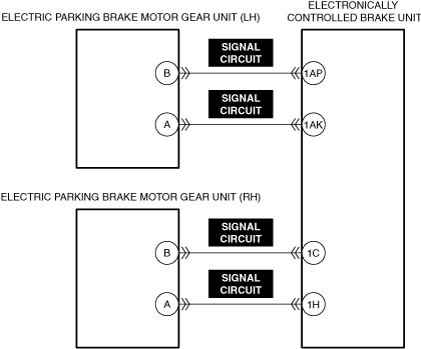

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

2

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (RH) CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT ELECTRONICALLY CONTROLLED BRAKE UNIT CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) SIGNAL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (RH) SIGNAL CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (RH) SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) SIGNAL CIRCUITS FOR SHORT CIRCUIT

•  Inspect the applicable circuits for short circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

9

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (RH) SIGNAL CIRCUITS FOR SHORT CIRCUIT

•  Inspect the applicable circuits for short circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

10

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the following procedure 3 times or more.

―  Pull up the electric parking brake switch to operate the electric parking brake.

―  Press down the electric parking brake switch to release the electric parking brake.

•  Perform the DTC inspection for the electronically controlled brake unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the malfunctioning location, then go to the next step.

(See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

11

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (RH) FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the following procedure 3 times or more.

―  Pull up the electric parking brake switch to operate the electric parking brake.

―  Press down the electric parking brake switch to release the electric parking brake.

•  Perform the DTC inspection for the electronically controlled brake unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification.

(See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the following procedure 3 times or more.

―  Pull up the electric parking brake switch to operate the electric parking brake.

―  Press down the electric parking brake switch to release the electric parking brake.

•  Perform the DTC inspection for the electronically controlled brake unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the electronically controlled brake unit, then go to the next step.
(See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].)

(See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
