DTC C2006:19 [ELECTRONICALLY CONTROLLED BRAKE UNIT]
id0402c6009800
Outline
System malfunction location |
Electric parking brake motor gear unit (LH) |
||||
---|---|---|---|---|---|
Detection condition
|
• The electronically controlled brake unit detects that the motor rotation speed during the specified time from the start of the electric parking brake motor gear unit (LH) operation is the specification or less.
|
||||
Fail-safe
|
Refer to “DTC Table” and “Fail-safe Function Malfunction Contents Table”. (See DTC TABLE [ELECTRONICALLY CONTROLLED BRAKE UNIT].)
|
||||
Possible cause
|
• Electric parking brake motor gear unit (LH) connector or terminal malfunction
• Electronically controlled brake unit connector or terminals malfunction
• Short to ground in electric parking brake motor gear unit (LH) signal circuit
• Short to power supply in electric parking brake motor gear unit (LH) signal circuit
• Short circuit in electric parking brake motor gear unit (LH) signal circuit
• Electric parking brake motor gear unit (LH) malfunction
• Electronically controlled brake unit malfunction
|
||||
![]() |
|||||
![]() |
|||||
![]() |
Diagnostic Procedure
Step |
Inspection |
Results |
Action |
---|---|---|---|
1
|
VERIFY OTHER ELECTRONICALLY CONTROLLED BRAKE UNIT DTCs
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Perform the following procedure 3 times or more.
• Perform the DTC inspection for the electronically controlled brake unit.
(See DTC INSPECTION.)
• Are any DTCs other than this DTC displayed?
|
Yes
|
If a procedure which verifies other DTCs is included in the diagnostic procedure of the displayed DTC:
• Go to the next step.
If a procedure which verifies other DTCs is not included in the diagnostic procedure of the displayed DTC:
• Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
Go to the next step.
|
||
2
|
INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
3
|

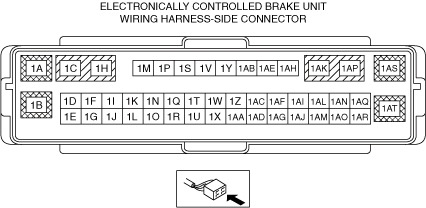

INSPECT ELECTRONICALLY CONTROLLED BRAKE UNIT CONNECTOR FOR MALFUNCTION
• Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)
• Are the connector and terminal normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
4
|

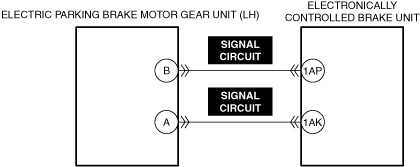

INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) SIGNAL CIRCUIT FOR SHORT TO GROUND
• Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
5
|
INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
6
|
INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) SIGNAL CIRCUITS FOR SHORT CIRCUIT
• Inspect the applicable circuits for short circuit.
(See CIRCUIT INSPECTION.)
• Is the circuit normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the malfunctioning location and perform the repair completion verification.
|
||
7
|
INSPECT ELECTRIC PARKING BRAKE MOTOR GEAR UNIT (LH) FOR MALFUNCTION DEPENDING ON REPEATABILITY
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Perform the following procedure 3 times or more.
• Perform the DTC inspection for the electronically controlled brake unit.
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification.
|
No
|
Go to repair completion verification 2.
|
||
Repair completion verification 1
|
VERIFY THAT VEHICLE IS REPAIRED
• Install/connect the part removed/disconnected during the troubleshooting procedure.
• Clear the DTC recorded in the memory.
(See CLEARING DTC.)
• Perform the following procedure 3 times or more.
• Perform the DTC inspection for the electronically controlled brake unit.
(See DTC INSPECTION.)
• Is the same Pending DTC present?
|
Yes
|
Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.
If the CAN communication is normal, perform the diagnosis from Step 1.
• If the malfunction recurs, replace the electronically controlled brake unit, then go to the next step.
|
No
|
Go to the next step.
|
||
Repair completion verification 2
|
VERIFY IF OTHER DTCs DISPLAYED
• Perform the DTC inspection.
(See DTC INSPECTION.)
• Are any DTCs displayed?
|
Yes
|
Repair the malfunctioning location according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
