FRONT BRAKE CALIPER REMOVAL/INSTALLATION [(E)]

Home  id041100000399

Replacement Part

Oil and Chemical Type

Warning

•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode.

Caution

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Note

•  When transitioning to maintenance mode, the electronically controlled brake unit and the electric parking brake functions stop.

•  When transitioning to maintenance mode, the clearance between the rear disc pads and the rear disc plates expands.

•  When the maintenance mode is completed, perform the electric parking brake automatic adjustment.

•  With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

1.  Switch to the maintenance mode. (See MAINTENANCE MODE [(E)].)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  End the maintenance mode. (See MAINTENANCE MODE [(E)].)

6.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING [(E)].)

7.  Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

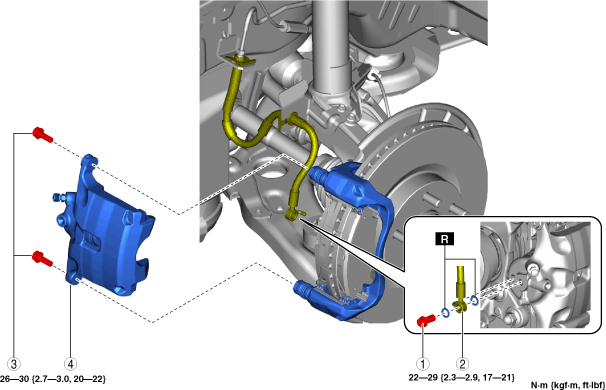

ac30zw00000949

1	Bolt
2	Brake hose
3	Bolt
4	Front brake caliper (See Front Brake Caliper Installation Note.)

Front Brake Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

ac30zw00000950

3.  Install the front brake caliper.
