ELECTRIC PARKING BRAKE SWITCH INSPECTION

id041200523300

Continuity Inspection

1. Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

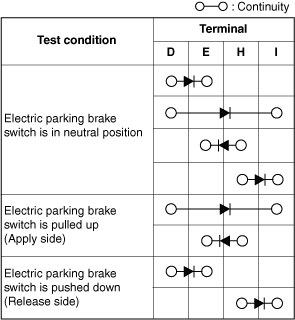

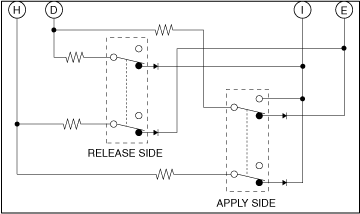

3. Verify that the continuity is as indicated in the table.

ac30zw00002691

am3zzw00026467

am3zzw00032187

• If not as indicated in the table, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

Illumination Light Inspection

Note

• The illumination light is built into the electric parking brake switch. If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

1. Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

3. Apply battery positive voltage to electric parking brake switch terminal K, and connect terminal B to ground.

ac30zw00002692

4. Verify that the illumination light turns on.

am3zzw00026469

• If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

Indicator Light Inspection

Note

• The indicator light is built into the electric parking brake switch. If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

1. Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2. Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

3. Apply battery positive voltage to electric parking brake switch terminal L, and connect terminal F to ground.

ac30zw00002693

4. Verify that the indicator light turns on.

am3zzw00026470

• If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)
