DTC B13BD:1C [DASH-ELECTRICAL SUPPLY UNIT]

id0702k8004200

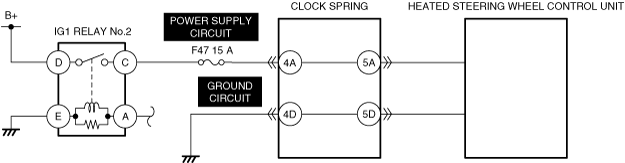

Outline

System malfunction location

Heated steering wheel control unit power supply circuit malfunction

Detection condition

•  The dash-electrical supply unit detects a malfunction in the steering warmer control unit power supply circuit.

Fail-safe

•  Stops the steering warmer output.

Possible cause

•  IG1 relay No.2 malfunction

•  Clock Spring connector or terminal malfunction

•  F47 15 A fuse malfunction

•  Short to ground in heated steering wheel control unit power supply circuit

•  Short to power supply circuit in heated steering wheel control unit power supply circuit

•  Open circuit in heated steering wheel control unit power supply circuit

•  Open circuit in heated steering wheel control unit ground circuit

•  Heated steering wheel control unit connector or terminal malfunction

•  Clock spring malfunction

•  Heated steering wheel control unit malfunction

•  Dash-electrical supply unit malfunction

System malfunction location	Heated steering wheel control unit power supply circuit malfunction
Detection condition	• The dash-electrical supply unit detects a malfunction in the steering warmer control unit power supply circuit.
Fail-safe	• Stops the steering warmer output.
Possible cause	• IG1 relay No.2 malfunction • Clock Spring connector or terminal malfunction • F47 15 A fuse malfunction • Short to ground in heated steering wheel control unit power supply circuit • Short to power supply circuit in heated steering wheel control unit power supply circuit • Open circuit in heated steering wheel control unit power supply circuit • Open circuit in heated steering wheel control unit ground circuit • Heated steering wheel control unit connector or terminal malfunction • Clock spring malfunction • Heated steering wheel control unit malfunction • Dash-electrical supply unit malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT IG1 RELAY No.2 FOR MALFUNCTION

•  Inspect the applicable part.
(See RELAY INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See RELAY LOCATION [(E)].)

2

INSPECT CLOCK SPRING CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT F47 15 A FUSE

•  Remove the F47 15 A fuse.

•  Inspect the F47 15 A fuse.

•  Is the fuse normal?

Yes

Reinstall the F47 15 A fuse, then go to the next step.

No

Replace the F47 15 A fuse and perform the repair completion verification.

4

INSPECT HEATED STEERING WHEEL CONTROL UNIT POWER SUPPLY CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT HEATED STEERING WHEEL CONTROL UNIT POWER SUPPLY CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

6

INSPECT HEATED STEERING WHEEL CONTROL UNIT POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT HEATED STEERING WHEEL CONTROL UNIT GROUND CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

8

INSPECT HEATED STEERING WHEEL CONTROL UNIT CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

9

INSPECT CLOCK SPRING FOR MALFUNCTION

•  Inspect the applicable part.
(See CLOCK SPRING INSPECTION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See CLOCK SPRING INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

10

INSPECT HEATED STEERING WHEEL CONTROL UNIT FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the dash-electrical supply unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the malfunctioning location and perform the repair completion verification.

(See HEATED STEERING WHEEL CONTROL UNIT REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the dash-electrical supply unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the dash-electrical supply unit, then go to the next step.
(See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)].)

(See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.
