DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)]
DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (E)]
id0740a28204y4
-
Caution
-
• When replacing the dash-electrical supply unit, perform the configuration to assure that the system operates correctly. (See
CONFIGURATION.)
1. To replace the dash-electrical supply unit, perform the following procedure.
- (1) Connect the M-MDS to the DLC-2.
-
- (2) Switch the ignition ON (engine off) .
-
- (3) Activate the M-MDS and perform the following procedure.
-
- 1) Press [Start] to start the vehicle identification.
-
- 2) Press the [Toolbox] tab.
-
- 3) Press the [Work Support] icon.
-
- 4) Press [Configuration].
-
- 5) Press [Run] to perform the configuration.
-
- 6) Press [DASH_ESU].
-
- 7) When [Install the new ECU] is displayed, move to the dash-electrical supply unit replacement procedure.
-
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
3. Remove the following parts:
- (1) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
-
- (2) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
-
- (3) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (4) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (5) Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
-
- (6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)
-
4. Disconnect the connectors.

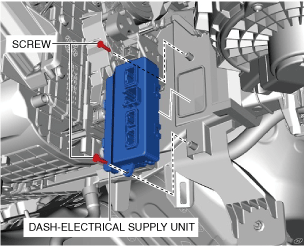

5. Remove the screws.
6. Remove the dash-electrical supply unit.
7. Install in the reverse order of removal.
8. If the dash-electrical supply unit is replaced, perform the following procedure.
- (1) Return to the M-MDS operation and press [Continue].
-
- (2) When the M-MDS processing is completed, press [Next].
-
- (3) When the M-MDS processing is completed, press [Next].
-
- (4) Verify that the following conditions/operations are met/completed, mark the check boxes, and then press [Next].
-
-
• Ignition is switched ON (engine off)
• Install battery charger to vehicle
• Battery voltage: 11.6 V or more
• Connect power cable to M-MDS
• Front doors on both sides and liftgate are open
- (5) Press [Finish].
-
- (6) Switch the ignition OFF.
-
- (7) Switch the ignition ON (engine off) to complete the global central configuration (GCC) for the dash-electrical supply unit.
-
- (8) Clear the DTC recorded in the memory. (See CLEARING DTC.)
-
