REFRIGERANT PRESSURE CHECK [(E)]

Home  id0710003002x2

1.  Install the manifold gauge set. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Start the engine.

3.  Prepare the vehicle as follows.

―  Vehicle is not exposed to solar radiation

―  Engine speed: 1,500 rpm

―  A/C switch: ON

―  Air intake port: REC

―  Airflow mode: VENT

―  Airflow temperature: MAX COLD

―  Airflow volume: MAX HI

―  Hood: Open

―  All the doors and the liftgate: Close

―  All the windows: Close

―  Active air shutter (with active air shutter): Open

4.  Wait for 8 min after the engine is started.

5.  Record the pressure indicated on the manifold gauge and ambient temperature for 2 min.

6.  Verify that there are high/low pressure value readings within the shaded areas of the figure.

Except Mexico Manufactured Vehicles

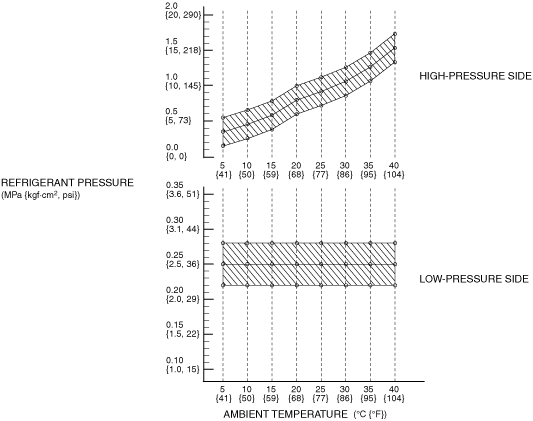

SKYACTIV-G (HFC-134a) (Except Chinese specs.)

ac30zw00001812

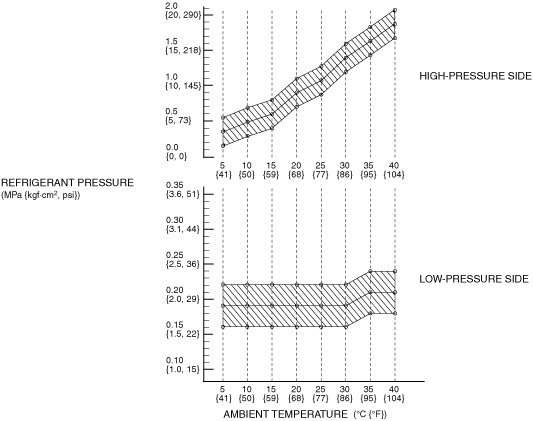

SKYACTIV-G (HFC-134a) (Chinese specs.)

ac30zw00004287

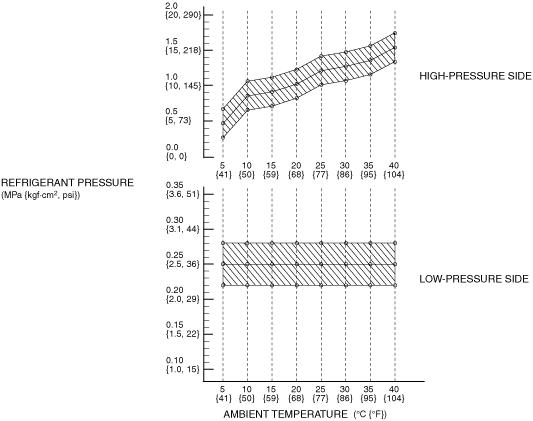

SKYACTIV-D 1.8 (HFC-134a)

ac30zw00001813

SKYACTIV-X 2.0 (HFC-134a) (Except Chinese specs.)

ac30zw00001814

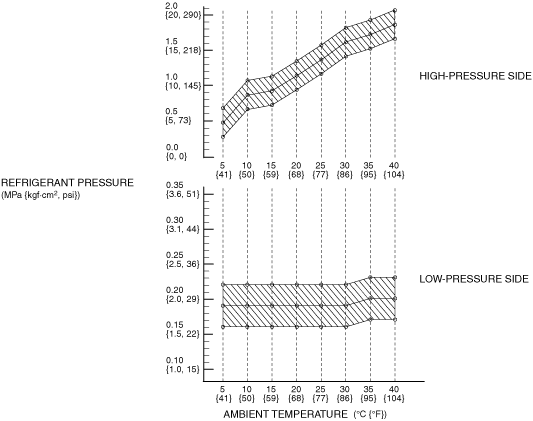

SKYACTIV-X 2.0 (HFC-134a) (Chinese specs.)

ac30zw00004288

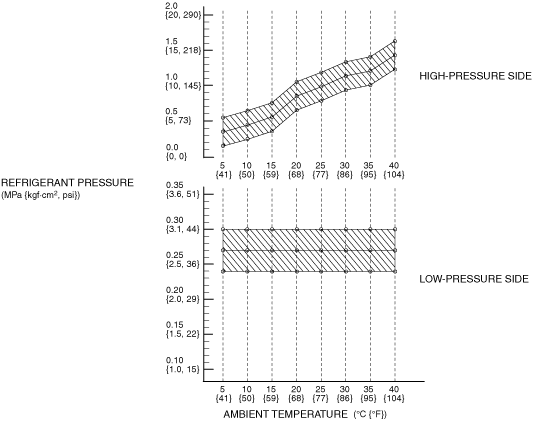

SKYACTIV-G (HFO-1234yf)

ac30zw00001815

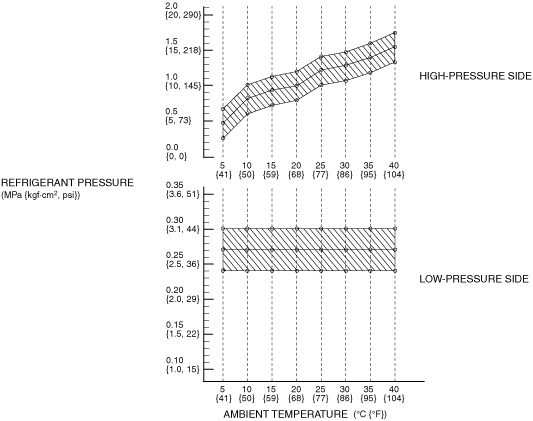

SKYACTIV-D 1.8 (HFO-1234yf)

ac30zw00001816

SKYACTIV-X 2.0 (HFO-1234yf)

ac30zw00001817

Mexico Manufactured Vehicles

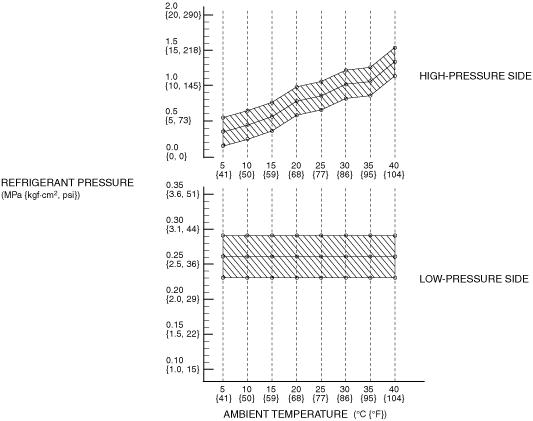

SKYACTIV-G (HFC-134a)

ac30zw00003750

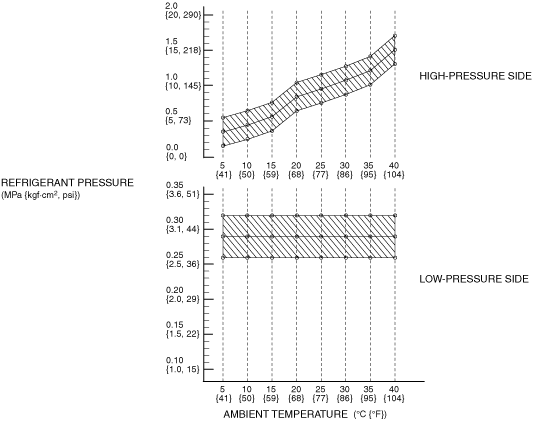

SKYACTIV-G (HFO-1234yf)

ac30zw00004289

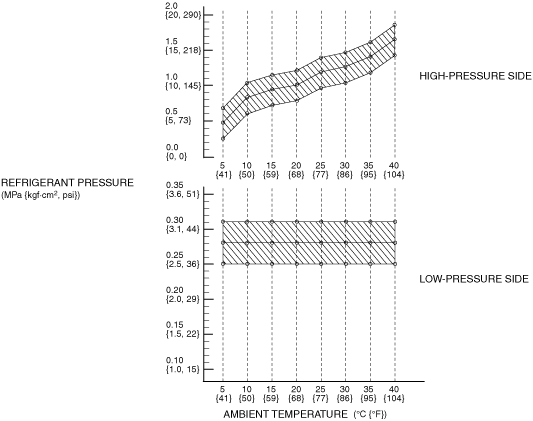

SKYACTIV-X (HFO-1234yf)

ac30zw00004604
