BLOWER MOTOR INSPECTION

BLOWER MOTOR INSPECTION

 id071100006000

1.  Disconnect the negative battery terminal.(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the blower motor.(See BLOWER MOTOR REMOVAL/INSTALLATION [(E)].)

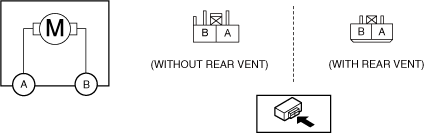

3.  Connect battery positive voltage to blower motor terminal B, connect terminal A to ground, and then verify its operation.

ac30zw00003346

•  If there is any malfunction, replace the blower motor.(See BLOWER MOTOR REMOVAL/INSTALLATION [(E)].)
