BLOWER MOTOR REMOVAL/INSTALLATION [(E)]

Home  id0711000059x2

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(5)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(6)  Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION [(E)].)

3.  Disconnect the blower motor connector.

am3zzw00028116

4.  Remove the screws.

5.  Remove the blower motor.

6.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Disconnect the blower motor connector.

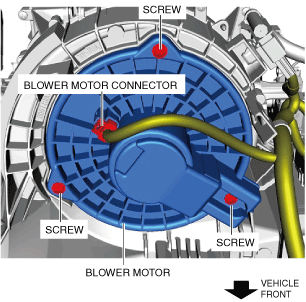

am3zzw00028117

4.  Remove the screws.

5.  Remove the blower motor.

6.  Install in the reverse order of removal.
