MAGNETIC CLUTCH INSPECTION [SKYACTIV-X 2.0]

MAGNETIC CLUTCH INSPECTION [SKYACTIV-X 2.0]

 id0711000065l7

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the magnetic clutch connector. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-X 2.0].)

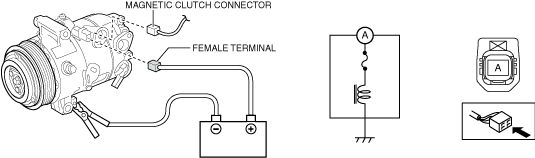

3.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

ac30zw00001628

4.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-X 2.0].)
