REAR BUCKLE REMOVAL/INSTALLATION

id081100800700

Rear buckle (LH)

1. Switch the ignition off.

2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

4. Disconnect the connector.

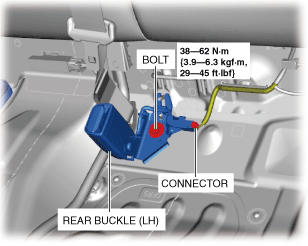

ac30zw00001784

5. Remove the bolt.

6. Remove the rear buckle (LH).

7. Install in the reverse order of removal. (See Rear buckle installation note.)

Rear buckle installation note

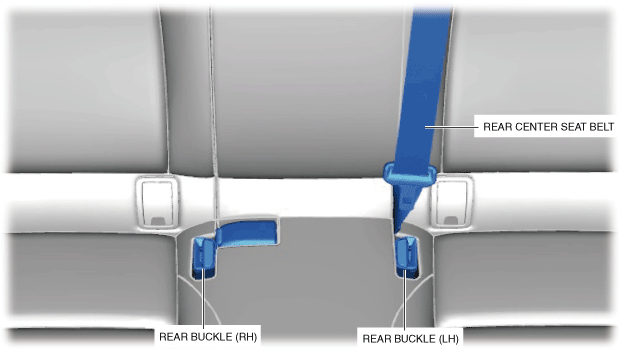

1. After installing the rear buckle, place it as shown in the figure.

ac30zw00001785

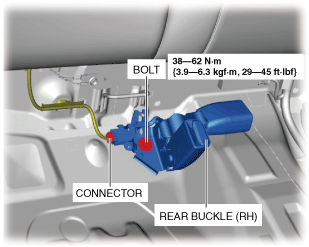

Rear buckle (RH)
