POWER OUTER MIRROR INSPECTION

POWER OUTER MIRROR INSPECTION

id091200002700


Up/down Adjustment Motor, Left/right Adjustment Motor, Retract/return Motor, Up/down Adjustment Sensor, Left/right Adjustment Sensor

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.

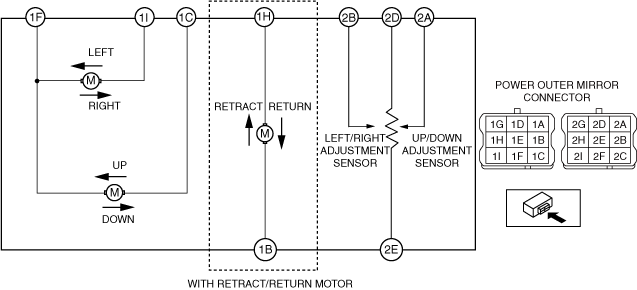

ac30zw00005006

Mirror operation direction

Battery positive voltage connect terminal

Ground connect terminal
Up
1C
1F
Down
1F
1C
Left
1I
1F
Right
1F
1I
Retract
1B
1H
Return
1H
1B

•  If retract/return operation cannot be verified as indicated in table
―  Replace the retract/return motor. (See RETRACT/RETURN MOTOR REMOVAL/INSTALLATION.)
•  If operations other than retract/return cannot be verified as indicated in table
―  Replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

4.  Verify the resistance of the up/down adjustment sensor and the left/right adjustment sensor for the power outer mirror.

Outer mirror (driver’s side)

Mirror operation

Resistance (Ω)

Terminal
Outer mirror (driver’s side) moved to upper direction limit
Approx. 0
2A—2D
Outer mirror (driver’s side) moved to lower direction limit
Approx. 5000
2A—2D
Outer mirror (driver’s side) moved to left direction limit
Approx. 5000
2B—2D
Outer mirror (driver’s side) moved to right direction limit
Approx. 0
2B—2D

Outer mirror (passenger's side)

Mirror operation

Resistance (Ω)

Terminal
Outer mirror (passenger's side) moved to upper direction limit
Approx. 0
2A—2D
Outer mirror (passenger's side) moved to lower direction limit
Approx. 5000
2A—2D
Outer mirror (passenger's side) moved to left direction limit
Approx. 0
2B—2D
Outer mirror (passenger's side) moved to right direction limit
Approx. 5000
2B—2D

•  If not within the standard, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)


Heated Outer Mirror Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.

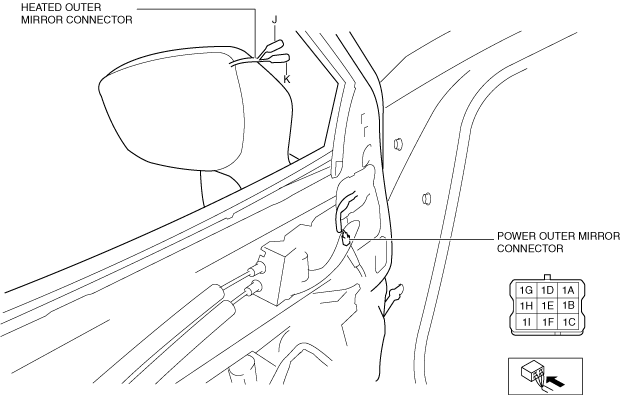

ac30zw00005007

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

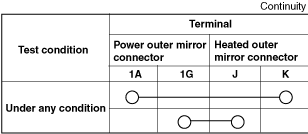

ac30zw00005008


Blind Spot Monitoring (BSM) Warning Indicator Light Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Verify that the continuity between blind spot monitoring (BSM) warning indicator light connector terminals is as indicated in the table.

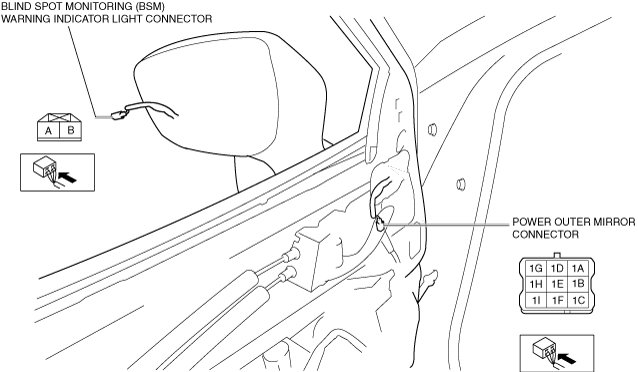

ac30zw00005009

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

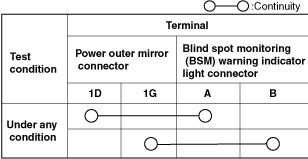

ac30zw00005010


Auto-dimming Outer Mirror Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

3.  Connect the power outer mirror connector terminal 2C to a dry cell battery's plus (+) terminal (1.2 V) and terminal 2F to its minus terminal.

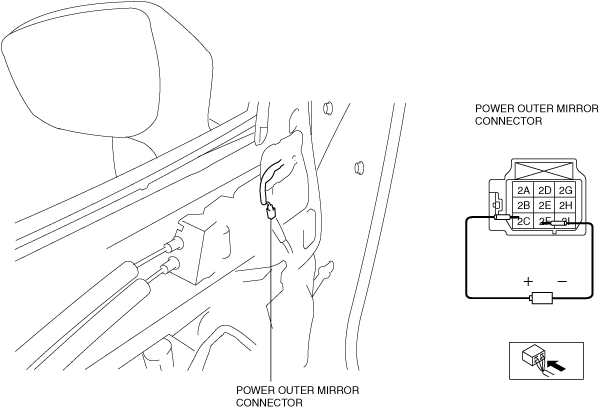

ac30zw00005011

•  Verify that the mirror side of the outer mirror glass changes color.

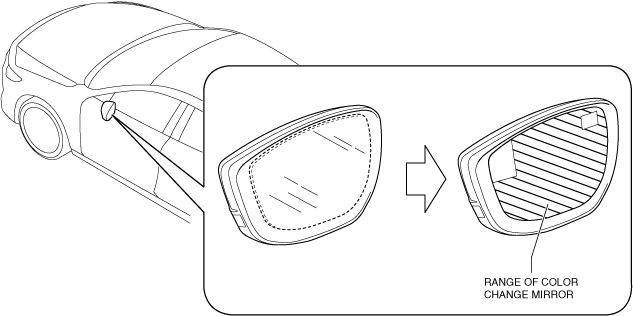

ac30zw00005012

4.  If there is any malfunction, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION.)

•  If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
