REARVIEW MIRROR REMOVAL/INSTALLATION

id091200009200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

Caution

•  Detach the rearview mirror from the mirror base while holding the rearview mirror by hand. Otherwise, the rearview mirror may fall off and be damaged.

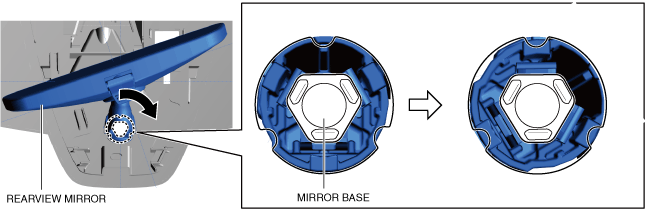

3.  Move the rearview mirror in the direction of the arrow shown in the figure and detach the rearview mirror from the mirror base.

ac30zw00004716

4.  Remove the rearview mirror. (See Rearview Mirror Installation Note.)

5.  Install in the reverse order of removal.

Rearview Mirror Installation Note

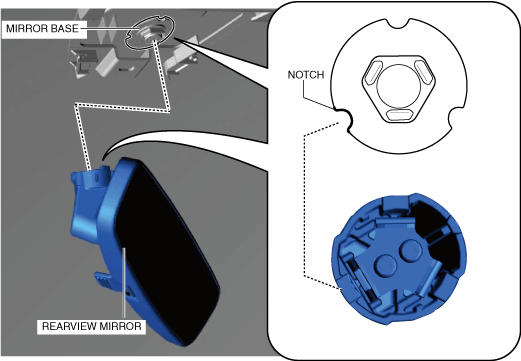

1.  Align the rearview mirror projections with the mirror base notches.

ac30zw00004717
