POSITION MEMORY SWITCH INSPECTION

id091300811300

Note

•  The position memory switch is integrated with the cluster switch No.2.

•  For the position memory switch removal/installation, refer to CLUSTER SWITCH REMOVAL/INSTALLATION. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the position memory switch. (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION.)

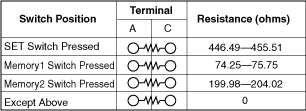

3.   Verify that the resistance and continuity between the position memory switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the position memory switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

ac30zw00002533

am3zzw00027719
