HOOD LATCH REMOVAL/INSTALLATION
id091400006500
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION.)

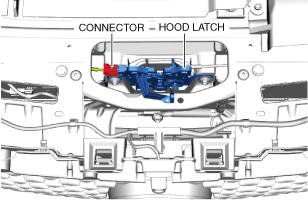

3. Disconnect the connector.
ac30zw00000755
|

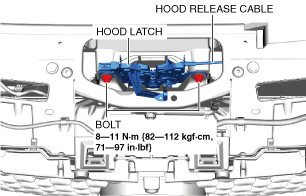

4. Disconnect the hood release cable.
ac30zw00000756
|
5. Remove the bolts.
6. Remove the hood latch. (See Hood latch Installation Note.)
7. Install in the reverse order of removal.
Hood latch Installation Note
1. Refer to [HOOD ADJUSTMENT] and adjust the hood latch so that the height difference and gap of the hood is within the specification. (See HOOD ADJUSTMENT.)
ac30zw00000757
|
