FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400511100

Driver's side

1.  Fully close the front door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(4)  Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

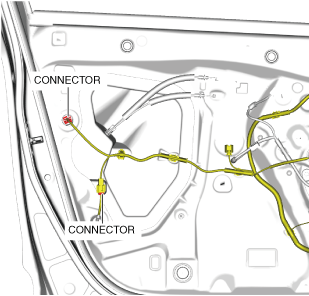

4.  Disconnect the connector.

ac30zw00000834

Caution

•  When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

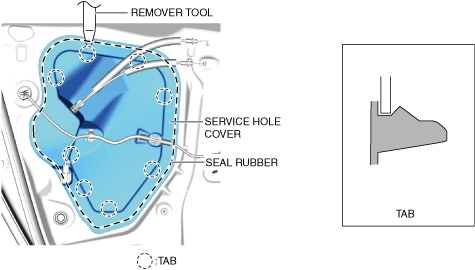

5.  Detach the service hole cover tabs from the body using a remover tool.

ac30zw00000835

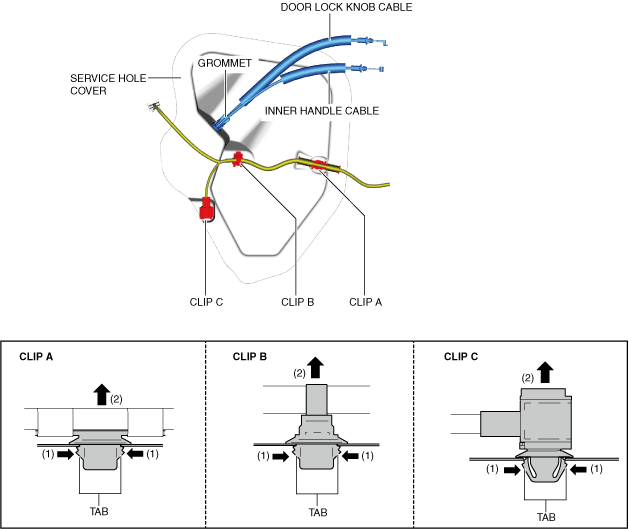

6.  Remove the clips A,B and C.

ac30zw00000836

7.  Remove the grommet.

8.  Pull the door lock knob cable and the inner handle cable from the service hole cover.

9.  Remove the service hole cover. (See Service hole cover installation note.)

10.  Remove the screws.

ac30zw00000837

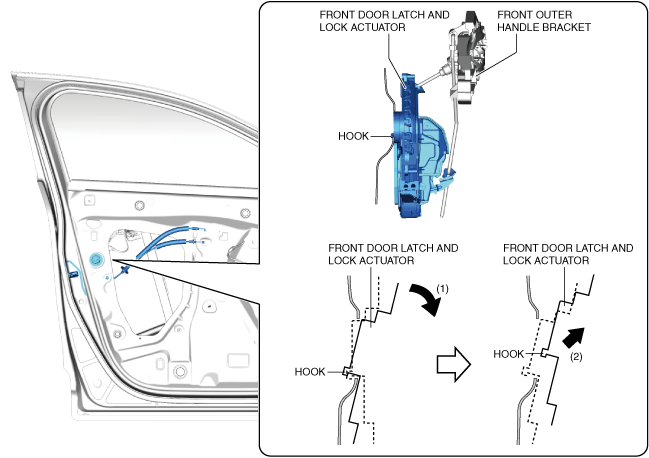

11.  Tilt the front door latch and lock actuator in the direction of arrow (1) shown in the figure, lift it in the direction of arrow (2), and then detach the front door latch and lock actuator hook from the body.

ac30zw00000838

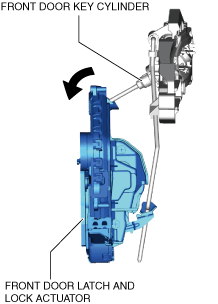

12.  Tilt the front door latch and lock actuator in the direction of the arrow shown in the figure and pull out the front door key cylinder from the front door latch and lock actuator.

ac30zw00000839

13.  Move the front door latch and lock actuator down in the direction of the arrow shown in the figure and pull out the rod from the rod holder.

ac30zw00000840

14.  Remove the front door latch and lock actuator. (See Front door latch and lock actuator installation note.)

15.  Install in the reverse order of removal.

Front door latch and lock actuator installation note

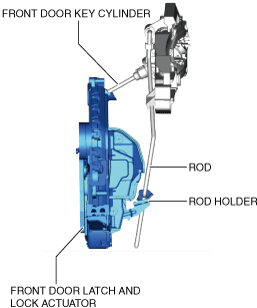

1.  Verify that the front door key cylinder is assembled to the front door latch and lock actuator.

ac30zw00000841

2.  Move the rod back and forth and verify that it is inserted into the rod holder hole.

Service hole cover installation note

1.  When installing the service hole cover, verify that the seal rubber is not wet.

ac30zw00000842

2.  If the seal rubber or a tab is damaged, replace the service hole cover.

Passenger's side

1.  Fully close the front door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

(3)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [(E)].)

(4)  Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

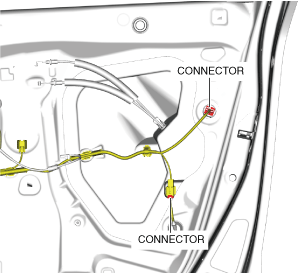

4.  Disconnect the connector.

ac30zw00000843

Caution

•  When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

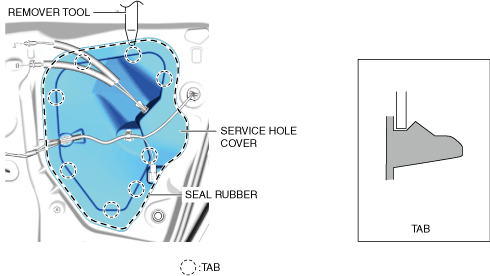

5.  Detach the service hole cover tabs from the body using a remover tool.

ac30zw00000844

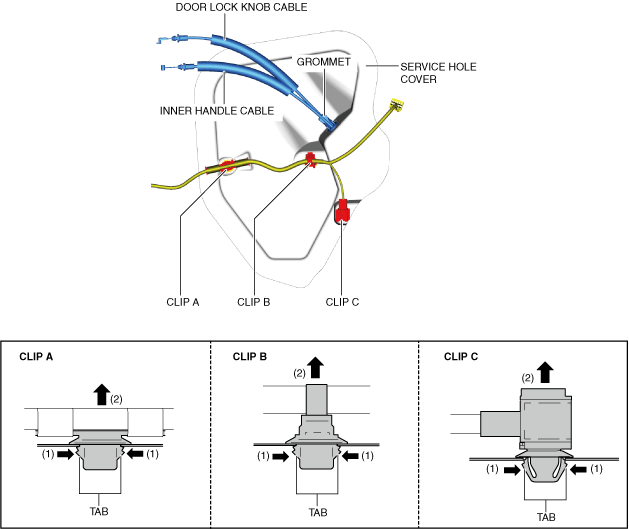

6.  Remove the clips A,B and C.

ac30zw00000845

7.  Remove the grommet.

8.  Pull the door lock knob cable and the inner handle cable from the service hole cover.

9.  Remove the service hole cover. (See Service hole cover installation note.)

10.  Remove the screws.

ac30zw00000846

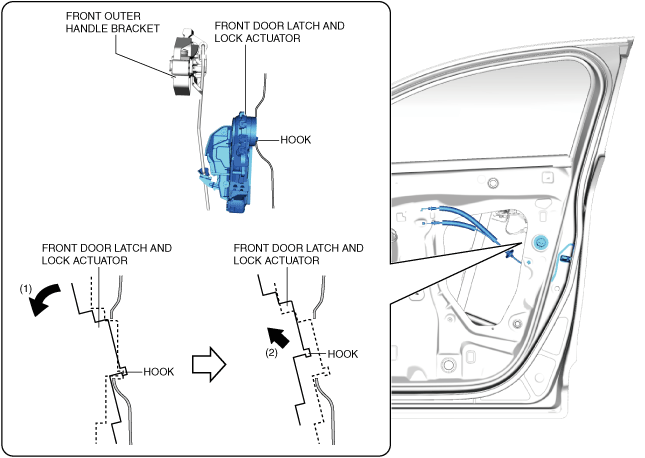

11.  Tilt the front door latch and lock actuator in the direction of arrow (1) shown in the figure, lift it in the direction of arrow (2), and then detach the front door latch and lock actuator hook from the body.

ac30zw00000847

12.  Move the front door latch and lock actuator down in the direction of the arrow shown in the figure and pull out the rod from the rod holder.

ac30zw00000848

13.  Remove the front door latch and lock actuator. (See Front door latch and lock actuator installation note.)

14.  Install in the reverse order of removal.

Front door latch and lock actuator installation note

1.  Move the rod back and forth and verify that it is inserted into the rod holder hole.

ac30zw00000849

Service hole cover installation note

1.  When installing the service hole cover, verify that the seal rubber is not wet.

ac30zw00000850

2.  If the seal rubber or a tab is damaged, replace the service hole cover.
