FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION [(E)]

FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION [(E)]

id0914005112x2


R.H.D

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to the front door and lock actuator terminals as indicated in the table below and verify the operation condition.

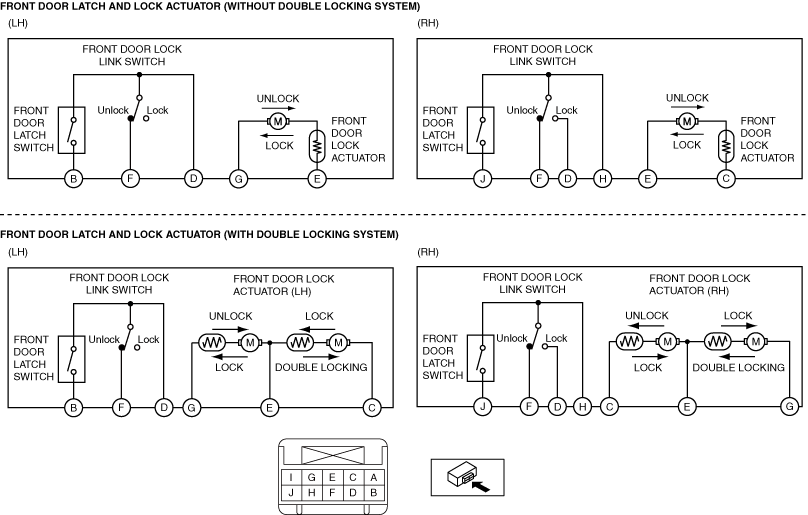

ac30zw00003948

Front door lock actuator (Without double locking system)

Front door lock actuator

B+ terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock

Front door lock actuator (With double locking system)

Front door lock actuator

B+ terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
E
C
Lock→Double locking
C
E
Double locking→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock
G
E
Lock→Double locking
E
G
Double locking→Lock

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

am3zzw00030233

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
Note
•  When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
ac5jjw00000020

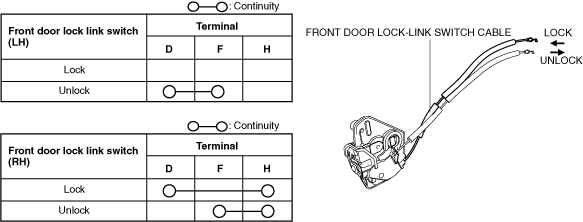

5.  When the front door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

am3zzw00030378

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)


L.H.D

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage and connect the ground to the front door and lock actuator terminals as indicated in the table below and verify the operation condition.

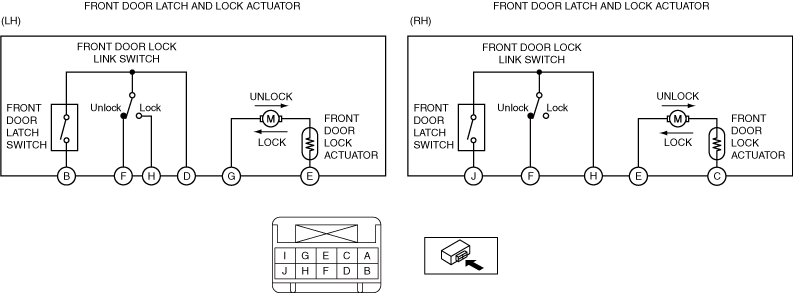

ac30zw00003949

Front door lock actuator

B+ terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

am3zzw00030233

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
Note
•  When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
ac5jjw00000020

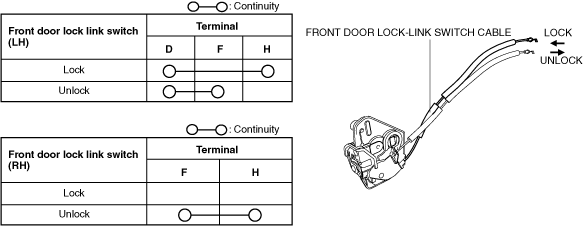

5.  When the front door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

am3zzw00030234

•  If not as indicated in the table, replace the front door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
