REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION [(E)]

REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION [(E)]

id0914005118x2


R.H.D

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

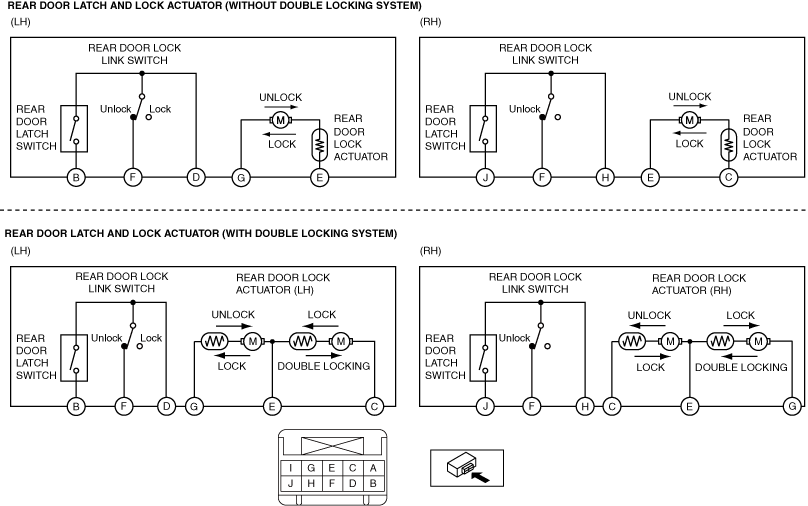

3.  Apply battery positive voltage and connect the ground to the rear door lock and actuator terminals as indicated in the table below and verify the operation condition.

ac30zw00003957

Rear door lock actuator (Without double locking system)

Rear door lock actuator

B+ terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock

Rear door lock actuator (With double locking system)

Rear door lock actuator

B+ terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
E
C
Lock→Double locking
C
E
Double locking→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock
E
G
Lock→Double locking
G
E
Double locking→Lock

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

am3zzw00030231

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
Note

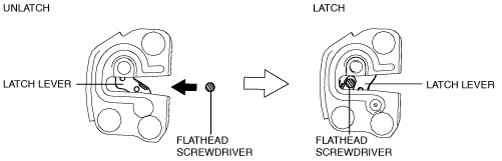

•  When inspecting the latch side of the rear door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
ac5jjw00000020

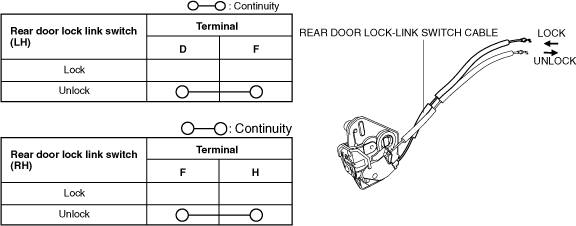

5.  When the door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

am3zzw00030232

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)


L.H.D

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

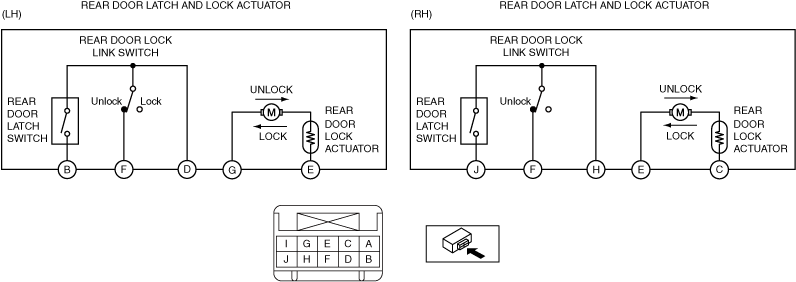

3.  Apply battery positive voltage and connect the ground to the rear door lock and actuator terminals as indicated in the table below and verify the operation condition.

ac30zw00003958

Rear door lock actuator (Without double locking system)

Rear door lock actuator

B+ terminal

Ground terminal

Operation
LH
G
E
Lock→Unlock
E
G
Unlock→Lock
RH
E
C
Lock→Unlock
C
E
Unlock→Lock

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  Verify that the continuity is as indicated in the table.

am3zzw00030231

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
Note
•  When inspecting the latch side of the rear door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
ac5jjw00000020

5.  When the door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

am3zzw00030232

•  If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
