REAR FINISHER REMOVAL/INSTALLATION

id091600446100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION.)

(2)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

(3)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(4)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(5)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(6)  Door lock switch (liftgate) (with door lock switch (liftgate)) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION [(E)].)

(7)  Power liftgate (PLG) rear switch (with power liftgate (PLG)) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION.)

(8)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

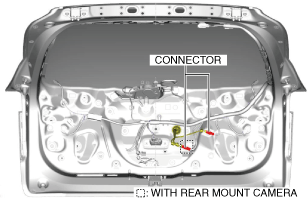

3.  Disconnect the connectors.

ac30zw00001425

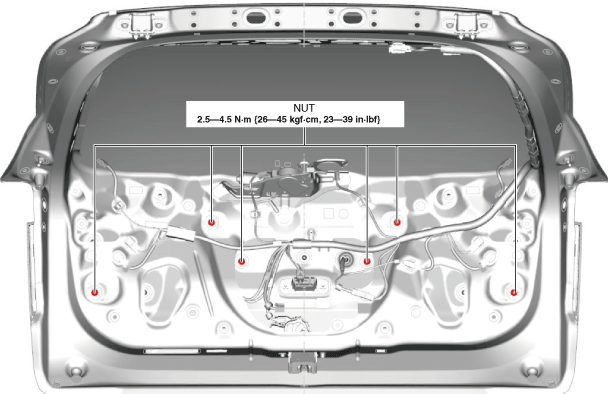

4.  Remove the nuts.

ac30zw00001426

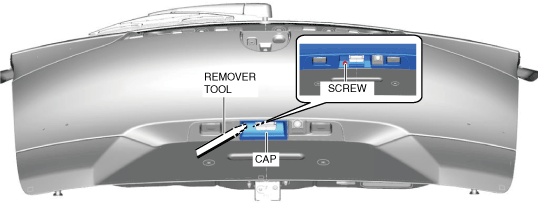

5.  Using a remover tool, remove the cap.

ac30zw00001427

6.  Remove the screw.

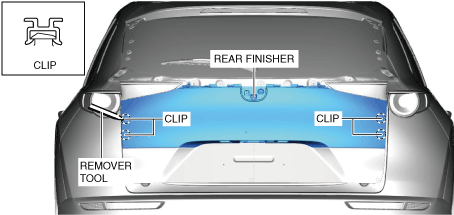

7.  Using a remover tool, remove the clips.

ac30zw00001428

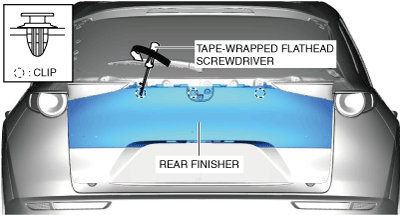

8.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, rotate it in the direction of the arrow and detach the clips.

ac30zw00001429

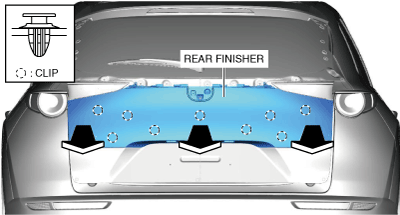

9.  Remove the rear finisher in the direction of the arrow shown in the figure while detaching the clips.

ac30zw00001430

10.  Remove the grommet.

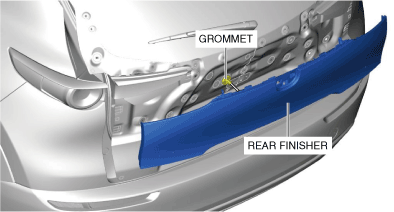

ac30zw00001431

11.  Pull the wiring harness out of the vehicle body.

12.  Remove the clips remaining on the vehicle body and install them to the rear finisher.

13.  When removing the wiring harness, perform the following procedure:

(1)  Disconnect the connectors.

ac30zw00001432

(2)  Remove the wiring harness clip and remove the wiring harness.

14.  When removing the bracket, perform the following procedure:

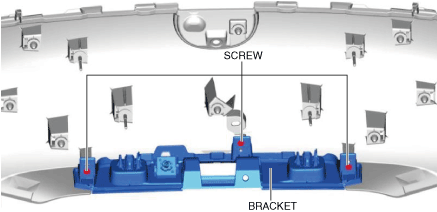

(1)  Remove the screws.

ac30zw00001433

(2)  Remove the bracket.

15.  Install in the reverse order of removal. (See Rear Finisher Installation Note.)

Note

•  When replacing the rear finisher, remove the license plate light. (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.)

•  When replacing the rear finisher, remove the rear mount camera. (with rear mount camera) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)

16.  Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

Rear Finisher Installation Note

1.  When a rear finisher is to be reused, perform the following procedure:

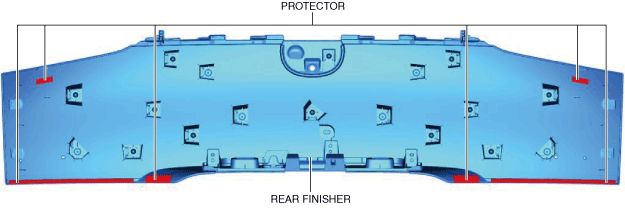

(1)  If the protector is damaged, replace the part that is damaged with a new protector.

ac30zw00001434
