MUDGUARD REMOVAL/INSTALLATION

id091600467600

Front Mudguard

1.  Remove the front tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

3.  Remove the bolt.

ac30zw00001442

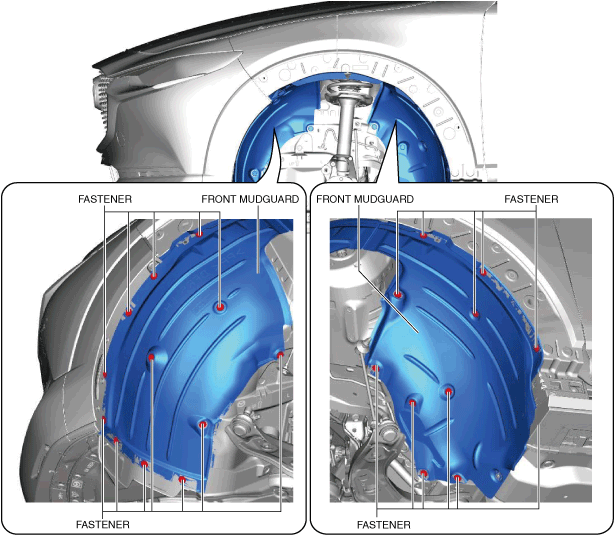

4.  Remove the fasteners.

ac30zw00001443

5.  Remove the front mud guard.

6.  Install in the reverse order of removal.

Rear Mudguard

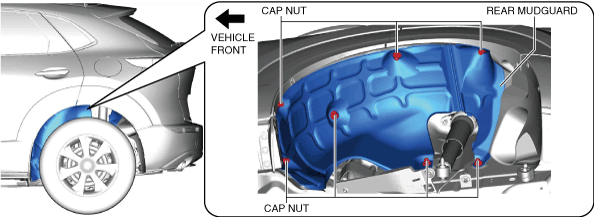

1.  Remove the cap nuts.

ac30zw00001444

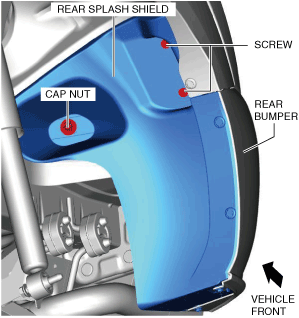

2.  Remove the screws and cap nut.

ac30zw00001445

3.  Partially peel back the rear splash shield.

4.  Remove the rear mudguard in the direction of the arrow shown in the figure.

ac30zw00001446

5.  Install in the reverse order of removal.
