CONSOLE SIDE PANEL REMOVAL/INSTALLATION
id091700606600
1. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION.)

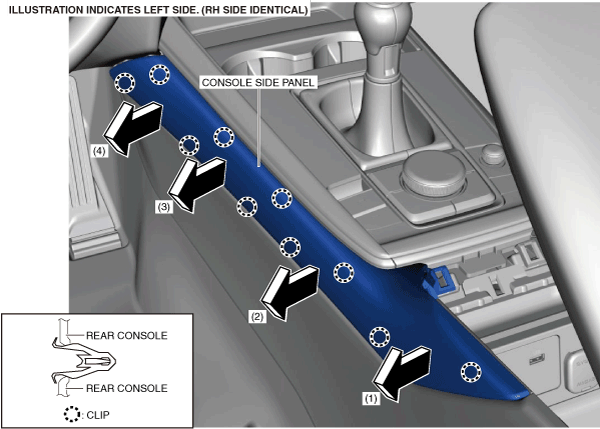

2. Move the console side panel in the order of arrows (1), (2), (3) and (4) shown in the figure, and remove it while detaching the clips.
ac30zw00000171
|
3. Install in the reverse order of removal.
