C-PILLAR TRIM REMOVAL/INSTALLATION

C-PILLAR TRIM REMOVAL/INSTALLATION

id091700802200

Replacement part

Clip D

Quantity: 1

Location use: C-pillar trim

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

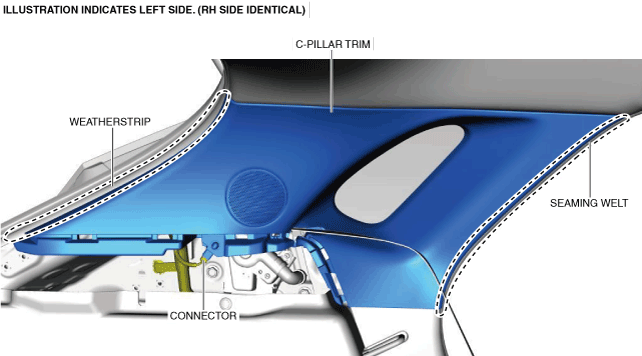

3.  Partially peel back the seaming welt.

ac30zw00000198

4.  Partially peel back the weatherstrip.

5.  Disconnect the connector. (with Bose®)

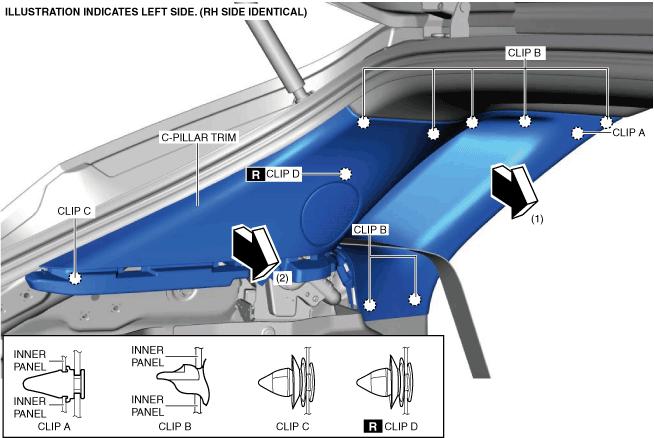

6.  Pull the C-pillar trim in the direction of the arrow in the order of (1), (2) while detaching clip A, clips B, clips C and clips D.

ac30zw00004166

7.  Install in the reverse order of removal.

Note
•  When replacing the C-pillar trim, remove the rear side speaker. (See REAR SPEAKER REMOVAL/INSTALLATION.)
•  When replacing the C-pillar trim, remove the rear speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)
