REAR SPEAKER REMOVAL/INSTALLATION

id092000802400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

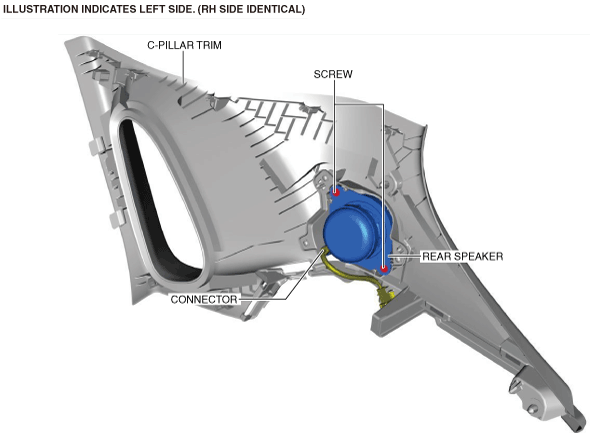

3.  Remove the screws.

ac30zw00000378

4.  Disconnect the connector.

5.  Remove the rear speaker.

6.  Install in the reverse order of removal.
