TRUNK END TRIM REMOVAL/INSTALLATION
id091700803400
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)
3. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION [(E)].)

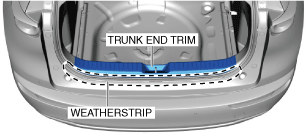

4. Partially peel back the weatherstrip.
ac30zw00000264
|

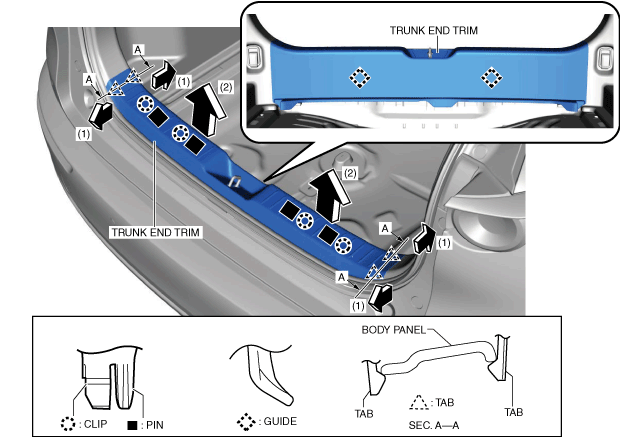

5. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching tabs, clips, pins and guides.
ac30zw00000265
|
6. Install in the reverse order of removal.
