VENTILATOR GRILLE REMOVAL/INSTALLATION [(E)]

id0917008046x2

Front Driver-side

LH

1.  Remove the driver-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

2.  Remove the screws.

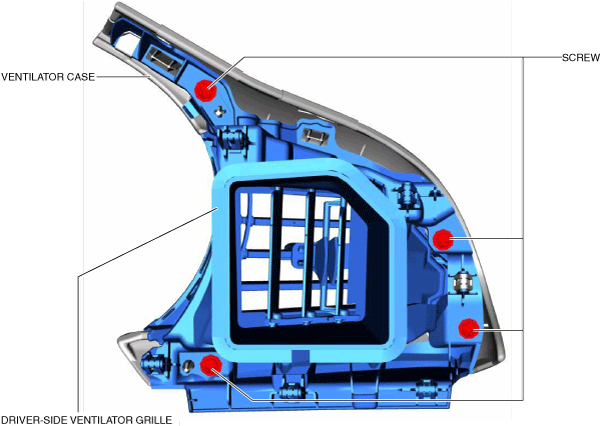

ac30zw00000277

3.  Remove the driver-side ventilator grille from the information panel.

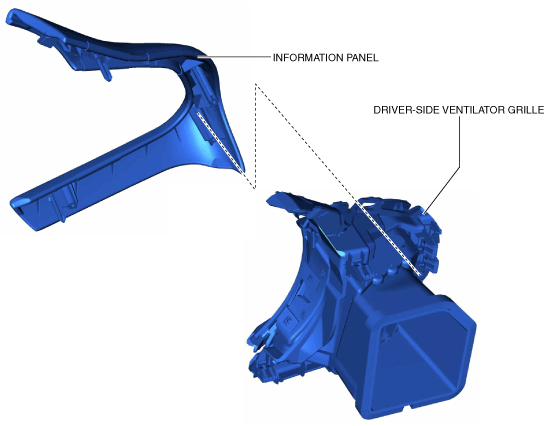

ac30zw00000278

4.  Install in the reverse order of removal.

RH

1.  Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

2.  Remove the screws.

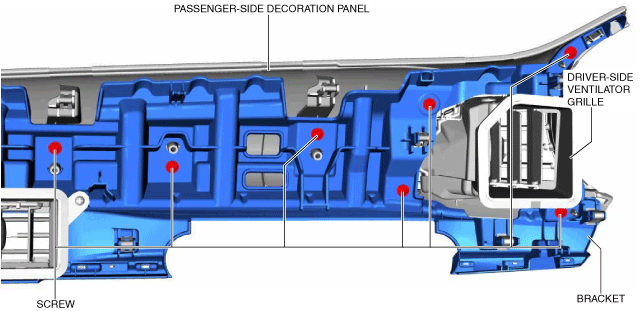

ac30zw00000279

3.  Set the bracket aside.

4.  Remove the driver-side ventilator grille from the passenger-side decoration panel.

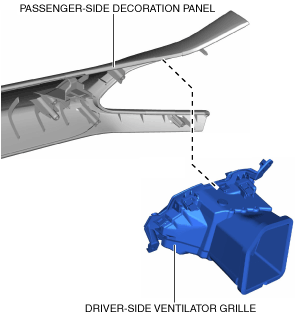

ac30zw00000280

5.  Install in the reverse order of removal.

Front Passenger-side

1.  Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

2.  Remove the screws.

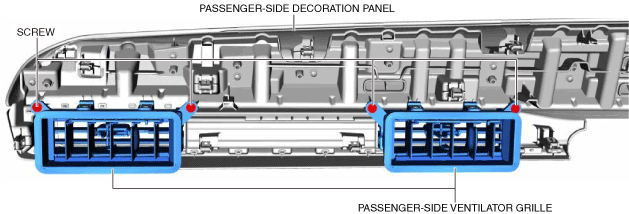

ac30zw00000281

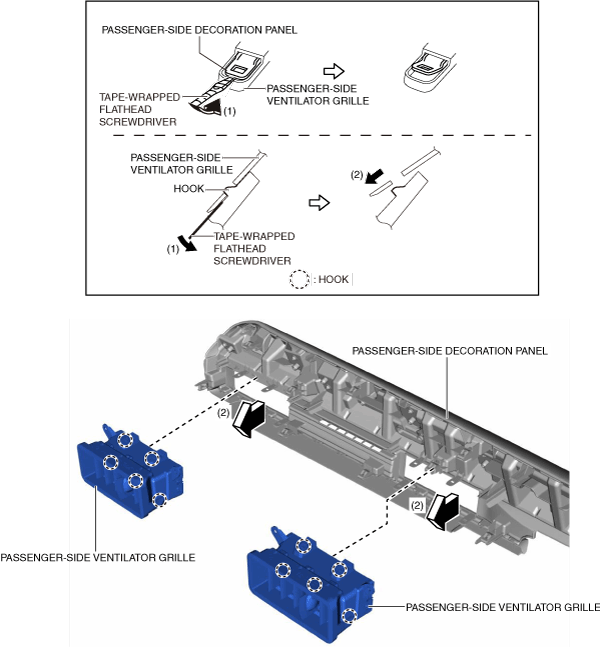

3.  Using a tape-wrapped flathead screwdriver, move it in the direction of arrow (1) shown in the figure and while detaching the hook from the passenger-side decoration panel, slide the passenger-side ventilator grille in the direction of arrow (2) to remove it.

ac30zw00000282

4.  Install in the reverse order of removal.

Rear

1.  Remove the console panel. (See REAR CONSOLE REMOVAL/INSTALLATION [(E)].)

2.  Remove the screws.

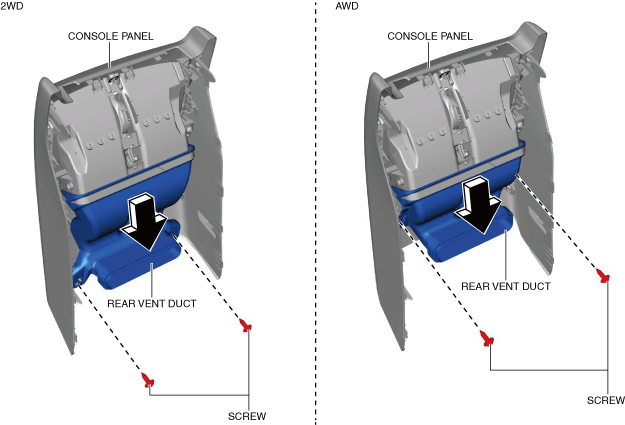

ac30zw00000283

3.  Remove the rear vent duct in the direction of the arrow shown in the figure.

4.  Remove the screws.

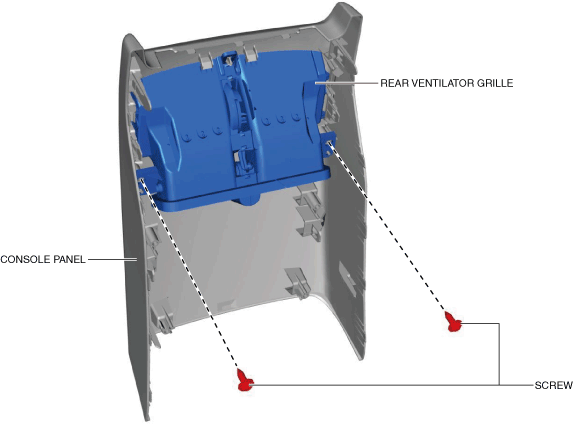

ac30zw00000284

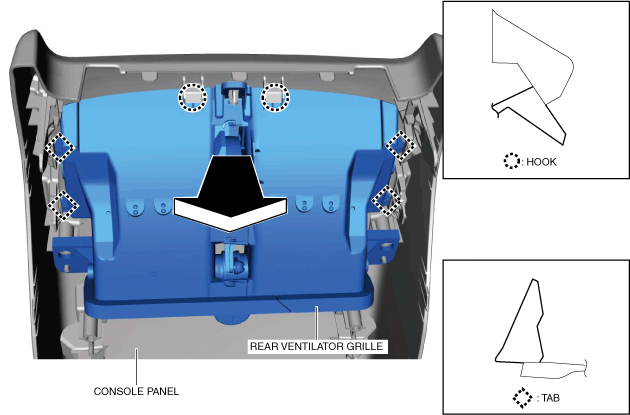

5.  Using a tape-wrapped flathead screwdriver, remove the rear ventilator grille in the direction of arrow shown in the figure while detaching hooks and tabs. (except chinese specs.)

ac30zw00000285

6.  Using a tape-wrapped flathead screwdriver, remove the rear ventilator grille in the direction of arrow shown in the figure while detaching the hooks. (chinese specs.)

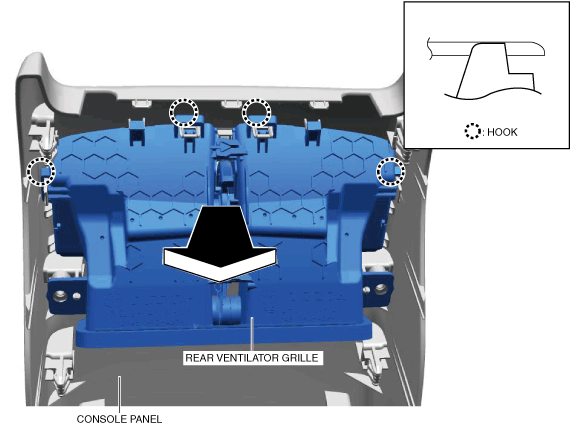

ac30zw00004168

7.  Install in the reverse order of removal.
