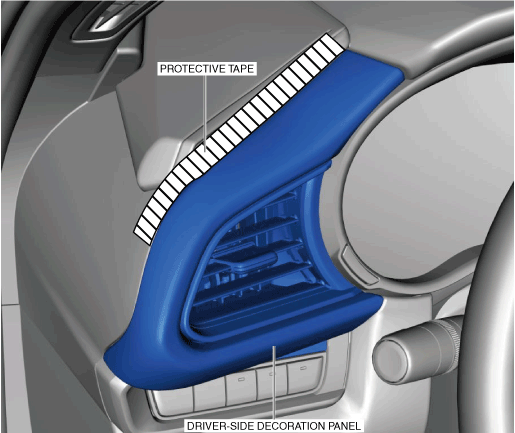

1. To prevent scratches or damage, apply protective tape to the position shown in the figure.
Caution
• If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.
ac30zw00000294

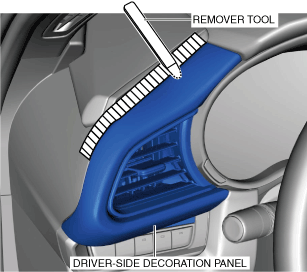

2. Insert a remover tool into the position shown in the figure.
ac30zw00000295

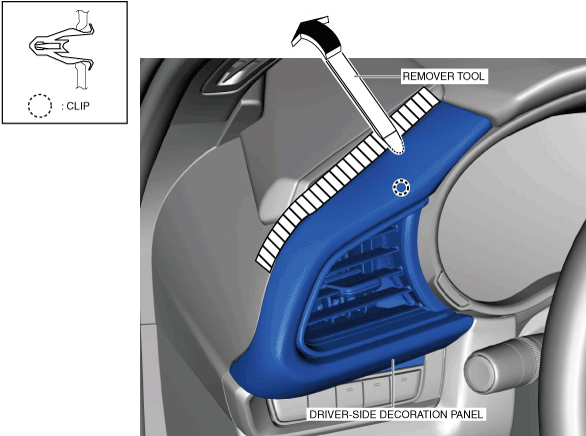

3. Move the remover tool in the direction of the arrow shown in the figure and detach the clip.
ac30zw00000296

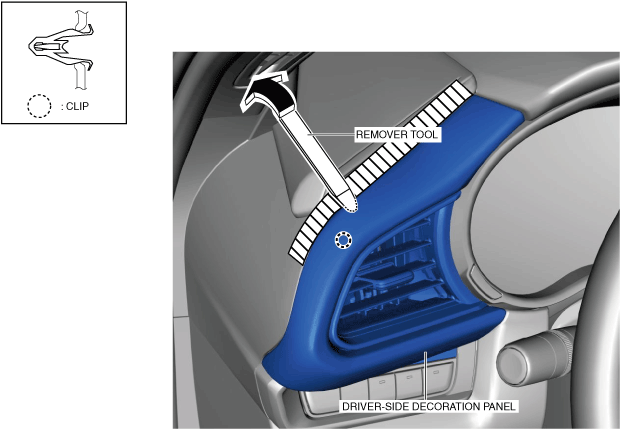

4. Move the remover tool in the direction of the arrow shown in the figure and detach the clip.
ac30zw00000297

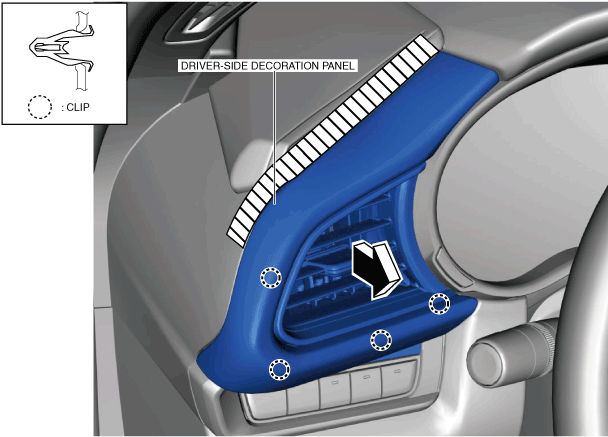

5. Move the driver-side decoration panel in the direction of the arrow shown in the figure and remove it while detaching the clips.

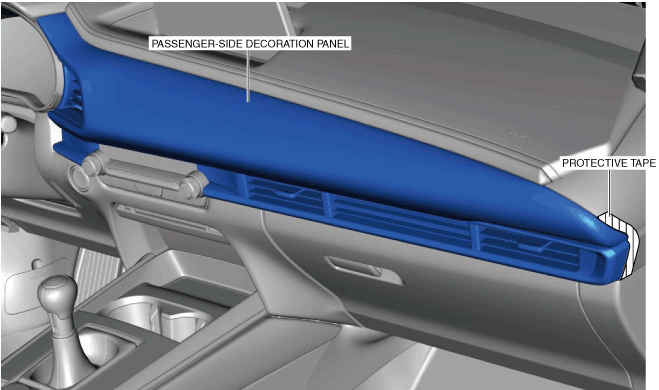

1. To prevent scratches or damage, apply protective tape to the position shown in the figure.
Caution
• If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.
ac30zw00000299

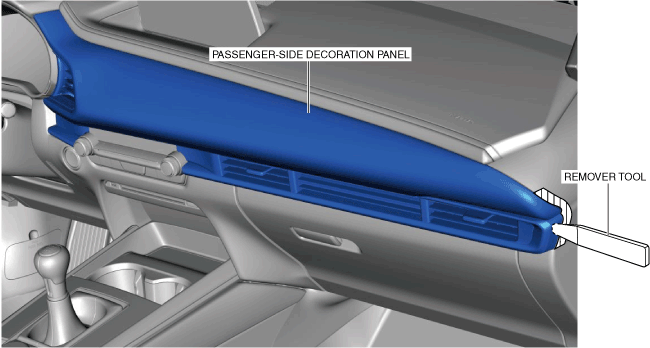

2. Insert a remover tool into the position shown in the figure.
am3zzw00029206

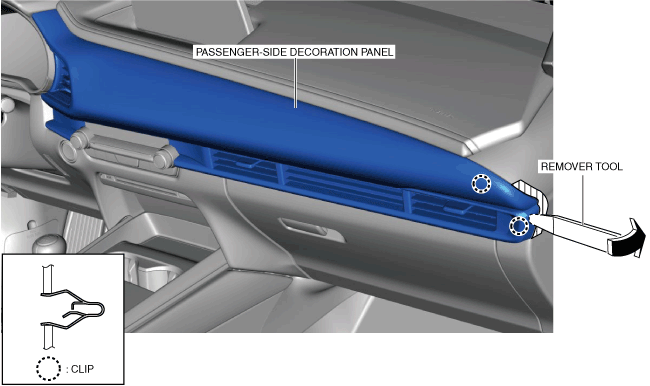

3. Move the remover tool in the direction of the arrow shown in the figure and detach the clips.
ac30zw00000300

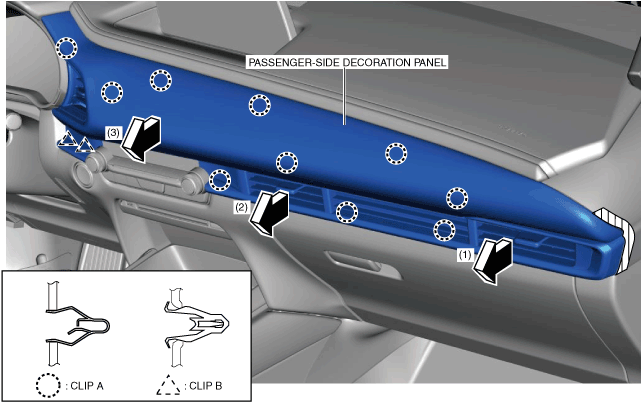

4. Move the passenger-side decoration panel in the order of arrows (1), (2), and (3) shown in the figure, and remove it while detaching the clips A and clip B.
