GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION

id092000801500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

3.  Remove the screws.

ac30zw00000372

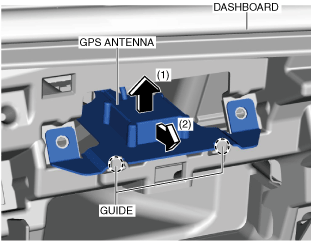

4.  Move the GPS antenna in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.

ac30zw00000373

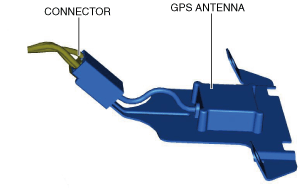

5.  Disconnect the connector.

ac30zw00000374

6.  Install in the reverse order of removal.
