INDICATOR UNIT REMOVAL/INSTALLATION
id092200037500
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)
2. Remove the sensor cover.(See SENSOR COVER REMOVAL/INSTALLATION.)
3. Disconnect the connector.

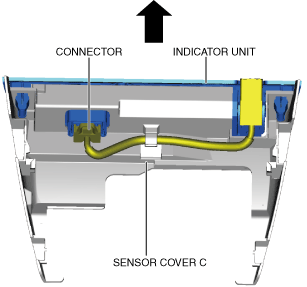

am3zzw00034228
|
4. Move the indicator unit in the direction of the arrow shown in the figure and remove it from the sensor cover C.
5. Remove the screw.

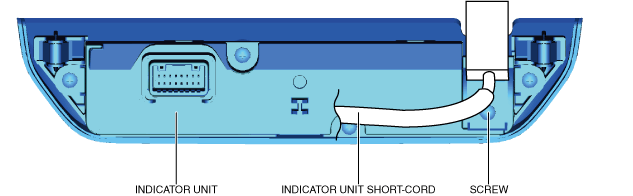

am3zzw00034229
|
6. Remove the indicator unit short-cord.
7. Install in the reverse order of removal.
