DTC U0423:68 [VEHICLE CONTROL MODULE]

id1502c5036600

Outline

System malfunction location

Error signal received from instrument cluster

Detection condition

•  The vehicle control module (VCM) receives an error signal related to the cruise control switch from the instrument cluster for 10 s.

Fail-safe

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

Possible cause

•  Instrument cluster malfunction

•  Clock spring connector or terminal malfunction

•  Short to ground in cruise control switch signal circuit

•  Cruise control switch malfunction

•  Instrument cluster connector or terminal malfunction

•  Vehicle control module (VCM) malfunction (built into body control module (BCM))

System malfunction location	Error signal received from instrument cluster
Detection condition	• The vehicle control module (VCM) receives an error signal related to the cruise control switch from the instrument cluster for 10 s.
Fail-safe	(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)
Possible cause	• Instrument cluster malfunction • Clock spring connector or terminal malfunction • Short to ground in cruise control switch signal circuit • Cruise control switch malfunction • Instrument cluster connector or terminal malfunction • Vehicle control module (VCM) malfunction (built into body control module (BCM))

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM).
(See DTC INSPECTION.)

•  Is a DTC related to an internal malfunction displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [VEHICLE CONTROL MODULE (E)].)

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

2

INSPECT INSTRUMENT CLUSTER FOR MALFUNCTION

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is a instrument cluster related DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)

No

Go to the next step.

3

CLOCK SPRING CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

CRUISE CONTROL SWITCH CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

CRUISE CONTROL SWITCH FOR MALFUNCTION

•  Inspect the applicable part.
(See CRUISE CONTROL SWITCH INSPECTION [(E)].)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

(See CRUISE CONTROL SWITCH REMOVAL/INSTALLATION.)

6

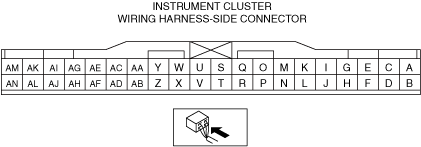

INSPECT INSTRUMENT CLUSTER CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

7

INSPECT INSTRUMENT CLUSTER FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the instrument cluster and perform the repair completion verification.

(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

No

Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS].

(See TROUBLESHOOTING PROCEDURE [(E)].)

If DTC is displayed

•  Repeat the diagnosis from Step 1.

If DTC is not displayed

•  Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the vehicle control module (VCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the body control module (BCM), then go to the next step.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT VEHICLE CONTROL MODULE (VCM) AND BODY CONTROL MODULE (BCM) FOR MALFUNCTION • Perform the DTC inspection for the vehicle control module (VCM) and the body control module (BCM). (See DTC INSPECTION.) • Is a DTC related to an internal malfunction displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [VEHICLE CONTROL MODULE (E)].) (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
1		No	Go to the next step.
2	INSPECT INSTRUMENT CLUSTER FOR MALFUNCTION • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is a instrument cluster related DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [BODY CONTROL MODULE (BCM) (E)].)
2		No	Go to the next step.
3	CLOCK SPRING CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	CRUISE CONTROL SWITCH CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	CRUISE CONTROL SWITCH FOR MALFUNCTION • Inspect the applicable part. (See CRUISE CONTROL SWITCH INSPECTION [(E)].) • Is the part normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification. (See CRUISE CONTROL SWITCH REMOVAL/INSTALLATION.)
6	INSPECT INSTRUMENT CLUSTER CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification.
7	INSPECT INSTRUMENT CLUSTER FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the instrument cluster and perform the repair completion verification. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
7		No	Perform the [ACTION FOR NON-REPEATABLE MALFUNCTIONS]. (See TROUBLESHOOTING PROCEDURE [(E)].) If DTC is displayed • Repeat the diagnosis from Step 1. If DTC is not displayed • Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the vehicle control module (VCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the body control module (BCM), then go to the next step. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
