DTC B115D:49 [DRIVER MONITORING CAMERA UNIT]

id1502d1061400

Outline

System malfunction location

Driver monitoring camera unit internal malfunction

Detection condition

•  The driver monitoring camera unit detects a driver monitoring camera LED malfunction.

Fail-safe

(See DTC TABLE [DRIVER MONITORING CAMERA UNIT (E)].)

Possible cause

•  Driver monitoring camera unit connector or terminal malfunction

•  Center display connector or terminal malfunction

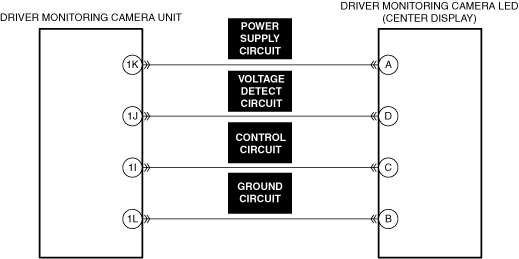

•  Short to ground in driver monitoring camera LED following circuits:

―  Power supply circuit

―  Voltage detect circuit

―  Control circuit

―  Ground circuit

•  Short to power supply in driver monitoring camera LED following circuits:

―  Power supply circuit

―  Voltage detect circuit

―  Control circuit

―  Ground circuit

•  Open circuit in driver monitoring camera LED following circuits:

―  Power supply circuit

―  Voltage detect circuit

―  Control circuit

―  Ground circuit

•  Driver monitoring camera LED malfunction (built into center display)

•  Driver monitoring camera unit malfunction

System malfunction location	Driver monitoring camera unit internal malfunction
Detection condition	• The driver monitoring camera unit detects a driver monitoring camera LED malfunction.
Fail-safe	(See DTC TABLE [DRIVER MONITORING CAMERA UNIT (E)].)
Possible cause	• Driver monitoring camera unit connector or terminal malfunction • Center display connector or terminal malfunction • Short to ground in driver monitoring camera LED following circuits: ― Power supply circuit ― Voltage detect circuit ― Control circuit ― Ground circuit • Short to power supply in driver monitoring camera LED following circuits: ― Power supply circuit ― Voltage detect circuit ― Control circuit ― Ground circuit • Open circuit in driver monitoring camera LED following circuits: ― Power supply circuit ― Voltage detect circuit ― Control circuit ― Ground circuit • Driver monitoring camera LED malfunction (built into center display) • Driver monitoring camera unit malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT DRIVER MONITORING CAMERA UNIT FOR MALFUNCTION

•  Perform the DTC inspection for the driver monitoring camera unit.
(See DTC INSPECTION.)

•  Are any of the following DTCs displayed?

―  U3000:04

―  U3000:42

―  U3000:49

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [DRIVER MONITORING CAMERA UNIT (E)].)

No

Go to the next step.

2

INSPECT DRIVER MONITORING CAMERA UNIT CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification procedure.

3

INSPECT CENTER DISPLAY CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(See CONNECTOR INSPECTION.)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification procedure.

4

INSPECT DRIVER MONITORING CAMERA LED POWER SUPPLY CIRCUIT, VOLTAGE DETECT CIRCUIT, CONTROL CIRCUIT, AND GROUND CIRCUIT FOR SHORT TO GROUND

•  Inspect the applicable circuit for a short to ground.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification procedure.

5

INSPECT DRIVER MONITORING CAMERA LED POWER SUPPLY CIRCUIT, VOLTAGE DETECT CIRCUIT, CONTROL CIRCUIT, AND GROUND CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification procedure.

6

INSPECT DRIVER MONITORING CAMERA LED POWER SUPPLY CIRCUIT, VOLTAGE DETECT CIRCUIT, CONTROL CIRCUIT, AND GROUND CIRCUIT FOR OPEN CIRCUIT

•  Inspect the applicable circuit for open circuit.
(See CIRCUIT INSPECTION.)

•  Is the circuit normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification procedure.

7

INSPECT DRIVER MONITORING CAMERA LED FOR MALFUNCTION DEPENDING ON REPEATABILITY

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the driver monitoring camera unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the center display and perform the repair completion verification.

(See CENTER DISPLAY REMOVAL/INSTALLATION.)

No

Go to repair completion verification 2.

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the driver monitoring camera unit.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the driver monitoring camera unit, then go to the next step.
(See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT DRIVER MONITORING CAMERA UNIT FOR MALFUNCTION • Perform the DTC inspection for the driver monitoring camera unit. (See DTC INSPECTION.) • Are any of the following DTCs displayed? ― U3000:04 ― U3000:42 ― U3000:49	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [DRIVER MONITORING CAMERA UNIT (E)].)
1		No	Go to the next step.
2	INSPECT DRIVER MONITORING CAMERA UNIT CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification procedure.
3	INSPECT CENTER DISPLAY CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (See CONNECTOR INSPECTION.) • Are the connector and terminal normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification procedure.
4	INSPECT DRIVER MONITORING CAMERA LED POWER SUPPLY CIRCUIT, VOLTAGE DETECT CIRCUIT, CONTROL CIRCUIT, AND GROUND CIRCUIT FOR SHORT TO GROUND • Inspect the applicable circuit for a short to ground. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification procedure.
5	INSPECT DRIVER MONITORING CAMERA LED POWER SUPPLY CIRCUIT, VOLTAGE DETECT CIRCUIT, CONTROL CIRCUIT, AND GROUND CIRCUIT FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
5		No	Repair or replace the malfunctioning location and perform the repair completion verification procedure.
6	INSPECT DRIVER MONITORING CAMERA LED POWER SUPPLY CIRCUIT, VOLTAGE DETECT CIRCUIT, CONTROL CIRCUIT, AND GROUND CIRCUIT FOR OPEN CIRCUIT • Inspect the applicable circuit for open circuit. (See CIRCUIT INSPECTION.) • Is the circuit normal?	Yes	Go to the next step.
6		No	Repair or replace the malfunctioning location and perform the repair completion verification procedure.
7	INSPECT DRIVER MONITORING CAMERA LED FOR MALFUNCTION DEPENDING ON REPEATABILITY • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the driver monitoring camera unit. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the center display and perform the repair completion verification. (See CENTER DISPLAY REMOVAL/INSTALLATION.)
7		No	Go to repair completion verification 2.
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the driver monitoring camera unit. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the driver monitoring camera unit, then go to the next step. (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(E)].)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
