FRONT CAMERA REMOVAL/INSTALLATION

id152000009700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the upper face. (See UPPER FACE REMOVAL/INSTALLATION.)

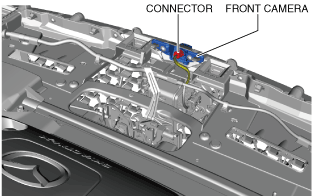

3.  Disconnect the connector.

ac30zw00000732

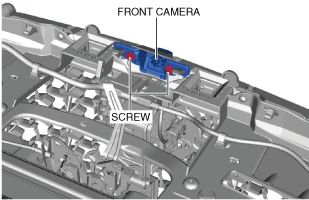

4.  Remove the screws.

ac30zw00000733

5.  Remove the front camera.

6.  Install in the reverse order of removal.

7.  Perform the front camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
