Diagnostic procedure
STEP
|
INSPECTION
|
ACTION
|
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service information.
If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
CLASSIFY OPEN CIRCUIT OR SHORT TO GROUND MALFUNCTION
• Disconnect purge solenoid valve tube that is connected to intake manifold.
• Connect vacuum pump to purge solenoid valve.
• Pump vacuum pump several times and stop.
• Wait a few seconds.
• Is vacuum maintained?
|
Yes
|
Go to Step 5.
|
No
|
Go to the next step.
|
||
4
|
INSPECT PASSAGE CONTROL OF PURGE SOLENOID VALVE
• Turn the ignition switch off.
• Disconnect purge solenoid valve connector.
• Pump vacuum pump several times and wait a few seconds.
• Is vacuum maintained?
|
Yes
|
Repair or replace wiring harness for short to ground, then go to Step 10.
|
No
|
Replace the purge solenoid valve, then go to Step 10.
|
||
5
|
INSPECT PURGE SOLENOID VALVE CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 10.
|
No
|
Go to the next step.
|
||
6
|
INSPECT PURGE SOLENOID VALVE
• Perform the purge solenoid valve inspection.
• Is purge solenoid valve normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the purge solenoid valve, then go to Step 10.
|
||
7
|

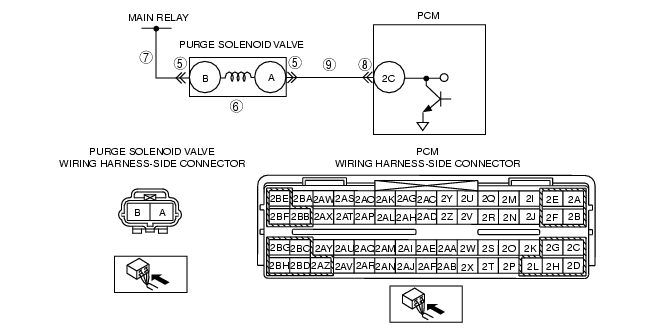

INSPECT PURGE SOLENOID VALVE POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between purge solenoid valve terminal B and body ground.
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness for an open circuit, then go to Step 10.
|
||
8
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 10.
|
No
|
Go to the next step.
|
||
9
|
INSPECT PURGE SOLENOID VALVE CONTROL CIRCUIT
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between purge solenoid valve terminal A (wiring harness-side) and body ground.
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness for short to power supply, then go to the next step.
|
No
|
Inspect the harness at between purge solenoid valve terminal A (wiring harness-side) and PCM terminal 2C (wiring harness-side) for open or short circuit.
• If there is continuity, go to the next step.
• If there is no continuity, repair or replace the wiring harness for an open circuit, then go to the next step.
|
||
10
|
VERIFY TROUBLESHOOTING OF DTC P0443 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Start the engine.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
11
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the "AFTER REPAIR PROCEDURE".
• Are any DTC present?
|
Yes
|
Go to the applicable DTC troubleshooting.
(See DTC TABLE [L8, LF, L3].)
|
No
|
Troubleshooting completed.
|
