 DTC P0112 [L3 Turbo]

DTC P0112 [L3 Turbo]

id0102b7803700

DTC P0112

IAT circuit low input

DETECTION CONDITION

• The PCM monitors the IAT sensor signal. If the PCM detects on IAT sensor voltage below 0.06 V, the PCM determines that the IAT sensor circuit has a malfunction.
Diagnostic support note
• This is a continuous monitor (CCM).
• MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
• FREEZE FRAME DATA is available.
• DTCs are stored in the PCM memory.

POSSIBLE CAUSE

• IAT sensor malfunction
• Poor connection at the MAF/IAT sensor or PCM connector

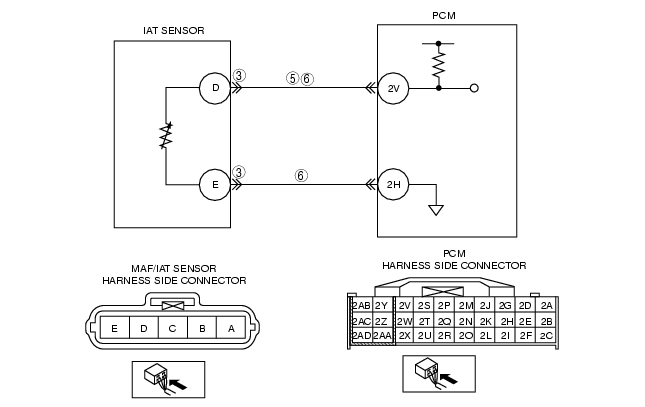

• Short to ground between MAF/IAT sensor terminal D and PCM terminal 2V
• Short to each harness IAT signal circuit and IAT ground circuit.
• PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service information.
If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT IAT SENSOR TERMINAL
• Turn the ignition switch off.
• Disconnect the MAF/IAT sensor connector.
• Inspect for bent terminal of MAF/IAT sensor terminals D and E (part-side).
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 7.
No
Go to the next step.
4
CLASSIFY IAT SENSOR MALFUNCTION OR HARNESS MALFUNCTION
• Connect the WDS or equivalent to DLC-2.
• Access the IAT PID.
• Verify the IAT value when disconnecting the MAF/IAT sensor connector.
• Does the IAT value change?
Yes
Replace the MAF/IAT sensor, then go to Step 7.
No
Go to the next step.
5
INSPECT IAT SIGNAL CIRCUIT FOR SHORT TO GROUND
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Inspect for continuity between MAF/IAT sensor terminal D (harness-side) and body ground.
• Is there continuity?
Yes
Repair or replace the wiring harness for a short to ground, then go to Step 7.
No
Go to the next step.
6
INSPECT IAT CIRCUITS FOR SHORT
• Inspect for continuity between MAF/IAT sensor terminals D and E (harness-side).
• Is there continuity?
Yes
Repair or the replace harness for a short, then go to Step 7.
No
Go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P0112 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Turn ignition switch to the ON position (Engine off).
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine and warm it up completely.
• Is same DTC present?
Yes
Replace PCM, then go to the next step.
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
Troubleshooting completed.
