 DTC P0117 [L3 Turbo]

DTC P0117 [L3 Turbo]

id0102b7804000

DTC P0117

ECT sensor circuit low input

DETECTION CONDITION

• The PCM monitors the ECT sensor signal. If the PCM detects the ECT sensor voltage below 0.2 V, the PCM determines that the ECT sensor circuit has a malfunction.
Diagnostic support note
• This is a continuous monitor (Engine cooling system).
• The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
• FREEZE FRAME DATA is available.
• DTCs are stored in the PCM memory.

POSSIBLE CAUSE

• ECT sensor malfunction
• Connect or terminal malfunction

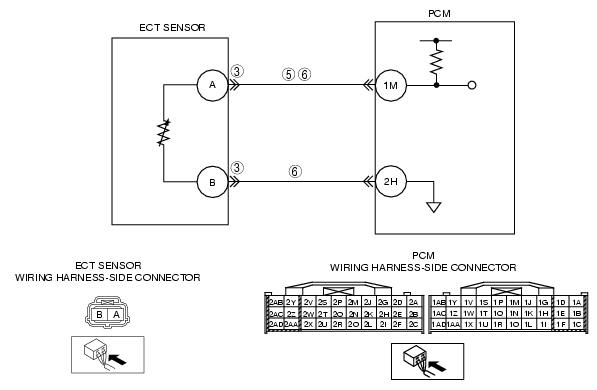

• Short to ground in the wiring harness between ECT sensor terminal A and PCM connector terminal 1M
• Short to each wiring harness in ECT signal circuit and ECT ground circuit
• PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service information.
If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FOR BENT TERMINALS
• Turn the ignition switch off.
• Disconnect the ECT sensor connector.
• Inspect ECT sensor terminals A and B (part-side) for bending.
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 7.
No
Go to the next step.
4
CLASSIFY ECT SENSOR MALFUNCTION OR WIRING HARNESS MALFUNCTION
• Connect the WDS or equivalent to DLC-2.
• Access the ECT PID.
• Verify the ECT value when disconnecting the ECT sensor connector.
• Does the ECT value change?
Yes
Replace the ECT sensor, then go to Step 7.
No
Go to the next step.
5
INSPECT ECT SIGNAL CIRCUIT FOR SHORT TO GROUND
• Turn the ignition switch off.
• Inspect for continuity between ECT sensor terminal A (wiring harness-side) and body ground.
• Is there continuity?
Yes
Repair or replace the wiring harness for a short to ground, then go to Step 7.
No
Go to the next step.
6
INSPECT ECT CIRCUIT FOR SHORT TO WIRING HARNESSES
• Inspect for continuity between ECT sensor terminal A and B (wiring harness-side).
• Is there continuity?
Yes
Repair or replace the wiring harness for a short, then go to the next step.
No
Go to the next step.
7
VERIFY TROUBLESHOOTING OF DTC P0117 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine.
• Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
8
VERIFY AFTER REPAIR PROCEDURE
• Perform the "AFTER REPAIR PROCEDURE".
• Are any DTCs present?
Yes
Go to the applicable DTC troubleshooting.
No
Troubleshooting completed.
