DTC P0222

TP sensor No.2 circuit low input

DETECTION CONDITION

• If PCM detects that the TP sensor No.2 voltage is below 0.2 V after the ignition switch to the ON position, the PCM determines that TP circuit has a malfunction.
Diagnostic support note
• This is a continuous monitor (CCM).
• MIL illuminates if the PCM detects the above malfunction conditions in first drive cycles.
• FREEZE FRAME DATA is available.
• DTCs are stored in the PCM memory.

POSSIBLE CAUSE

• TP sensor malfunction
• Connector or terminal malfunction
• Open circuit between throttle body terminal C and PCM terminal 3J
• Short to ground between throttle body terminal C and PCM terminal 3J
• Open circuit between throttle body terminal B and PCM terminal 3P
• Short to ground between throttle body terminal B and PCM terminal 3P
• PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service information.
If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3

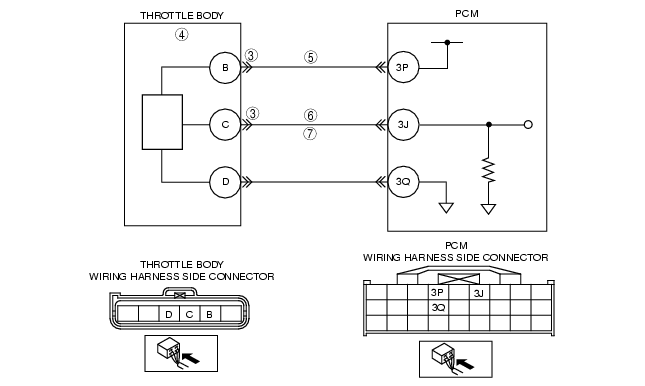

CLASSIFY TP SENSOR OR HARNESS MALFUNCTION
• Connect the WDS or equivalent.
• Access the TP2 PID.
• Disconnect the throttle body connector.
• Connect a jumper wire between throttle body terminals B and C (harness-side).
• Is the voltage above 4.9 V?
Yes
Go to the next step.
No
Go to step 5.
4
INSPECT TP SENSOR
• Perform the TP sensor inspection.
• Is the TP sensor normal?
Yes
Inspect throttle body connector terminal B connection for poor connection. Repair or replace if necessary, then go to Step 8.
No
Replace throttle body, then go to Step 8.
5
INSPECT POWER SUPPLY CIRCUIT VOLTAGE AT THROTTLE BODY CONNECTOR
Note
• If DTC P0107 and P2228 are also retrieved with P0122, go to the CONSTANT VOLTAGE troubleshooting procedure.
• Turn ignition switch to the ON position (Engine off).
• Measure the voltage at throttle body terminal B (harness-side).
• Is the voltage within 4.5- 5.5 V?
Yes
Go to the next step.
No
Repair or replace for an open circuit between throttle body connector terminal B and PCM connector terminal 3P (harness-side).
Then, then go to Step 8.
6
VERIFY TP2 SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch off.
• Inspect for continuity between throttle body terminal C (harness-side) and PCM terminal 3J.
• Is there continuity?
Yes
Go to the next step.
No
Repair or replace the suspected wiring harness, then go to Step 8.
7
VERIFY TP2 SIGNAL CIRCUIT FOR SHORT TO GROUND
• Inspect for continuity between throttle body terminal C (harness-side) and body ground.
• Is there continuity?
Yes
Repair or replace the suspected wiring harness, then go to the next step.
No
Go to the next step.
8
VERIFY TROUBLESHOOTING OF DTC P0222 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Turn ignition switch to the ON position (Engine off).
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine and warm it up completely.
• Is same DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
Troubleshooting completed.
