STEP
|
INSPECTION
|
ACTION
|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
3
|
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
• Connect the WDS or equivalent to the DLC-2.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine.
• Is the same DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
Intermittent concern exists.
Perform the "INTERMITTENT CONCERN TROUBLESHOOTING".
|
|
4
|
INSPECT CKP SENSOR CONNECTOR FOR POOR CONNECTION
• Verify that the CKP sensor connector is connected securely.
• Is connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Reconnect the connector, then go to Step 12.
|
|
5
|

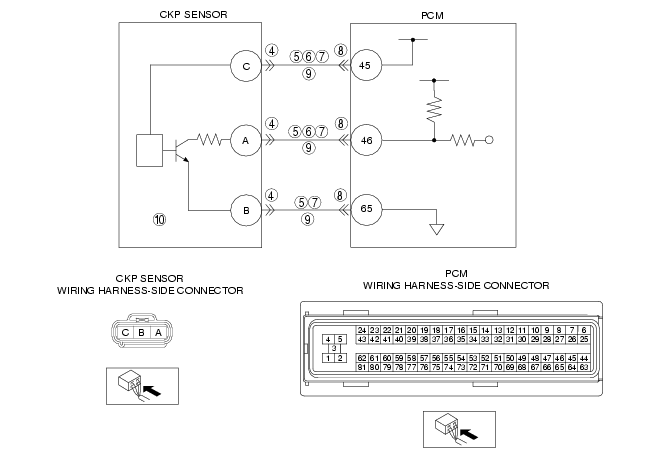

INSPECT CKP CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn engine switch off
• Disconnect the CKP sensor connector.
• Turn the engine switch to the ON position (Engine off).
• Measure the voltage between following terminals (harness-side):
-
- CKP sensor terminal A
-
- CKP sensor terminal B
-
- CKP sensor terminal C
• Is the voltage B+?
|
Yes
|
Repair or replace the suspected wiring harness, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT CKP CIRCUIT FOR SHORT TO GROUND
• Inspect for continuity between following terminal and body ground:
-
- CKP sensor connector terminal A (harness-side)
-
- CKP sensor connector terminal C (harness-side)
• Is there continuity?
|
Yes
|
Repair or replace the suspected wiring harness, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
7
|
INSPECT CKP CIRCUITS FOR SHORT CIRCUIT
• Inspect for continuity between CKP sensor connector terminals (harness-side).
• Are there continuity?
|
Yes
|
Repair or replace the suspected wiring harness, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
8
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair the terminal, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
9
|
INSPECT CKP CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between the following circuits:
-
- CKP sensor terminal A (harness-side) and PCM terminal 46 (harness-side)
-
- CKP sensor terminal B (harness-side) and PCM terminal 65 (harness-side)
-
- CKP sensor terminal C (harness-side) and PCM terminal 45 (harness-side)
• Are there continuity?
|
Yes
|
Go to Step 12.
|
|
No
|
Repair or replace the suspected wiring harness, then go to Step 12.
|
|
10
|
VERIFY CKP SENSOR INSTALLATION CONDITION
• Inspect for CKP sensor looseness.
• Is CKP sensor loosen?
|
Yes
|
Retighten the CKP sensor installation bolt, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
11
|
INSPECT CKP SENSOR
• Turn the engine switch off.
• Perform the CKP sensor inspection.
• Is the CKP sensor normal?
|
Yes
|
Go to the next step.
|
|
No
|
Inspect the CKP sensor pulse wheel for damage. Replace the CKP sensor pulse wheel and go to the next step.
|
|
12
|
VERIFY TROUBLESHOOTING OF DTC P0337 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine and idle it.
• Is the same DTC present?
|
Yes
|
Replace the PCM, go to the next step.
|
|
No
|
Go to the next step.
|
|
13
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the Repair Verification Drive Mode.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
