1. Disconnect the negative battery cable.
2. Remove the shroud panel. (See SHROUD PANEL REMOVAL/INSTALLATION.)
3. Remove the cooler pipe stay. (See CONDENSER REMOVAL/INSTALLATION.)

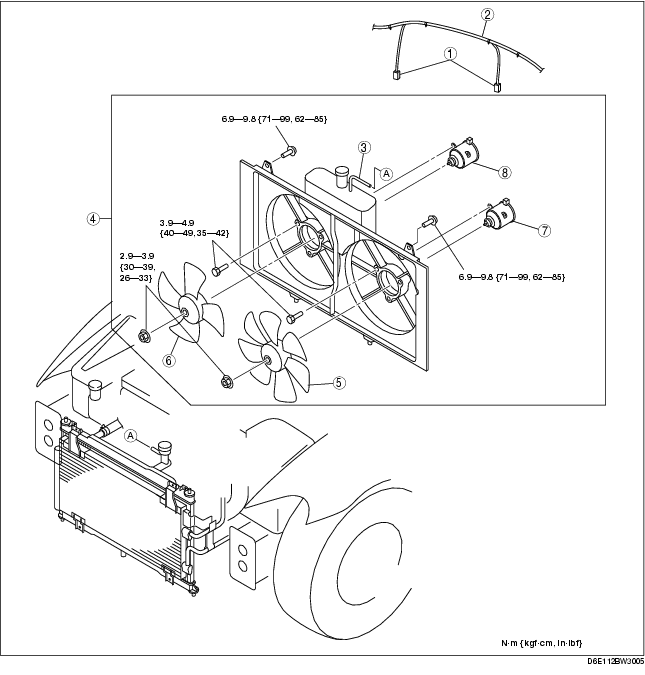

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
|
1
|
Cooling fan motor connectors
|
|
2
|
Wiring harness
|
|
3
|
Coolant reserve tank hose
|
|
4
|
Cooling fan component
|
|
5
|
Cooling fan No.1
|
|
6
|
Cooling fan No.2
|
|
7
|
Cooling fan motor No.1
|
|
8
|
Cooling fan motor No.2
|
