VARIABLE TUMBLE SOLENOID VALVE INSPECTION [L8, LF, L3]

1. Remove the variable tumble solenoid valve. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L8, LF, L3].)

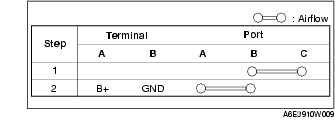

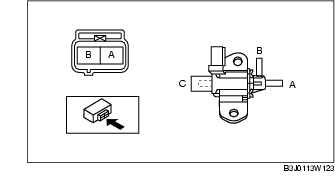

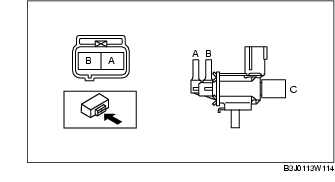

2. Inspect airflow between the ports under the following conditions.

• If not as specified, replace the variable tumble solenoid valve.

• If as specified, carry out the "Circuit Open/Short Inspection".

LF

L8, L3

Circuit Open/Short Inspection

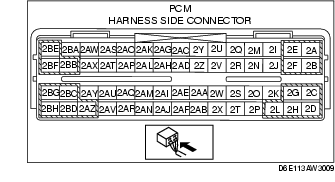

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L8, LF, L3].)

2. Inspect the following wiring harness for open or short (continuity check).

Open circuit

• If there is no continuity, the circuit is open. Repair or replace the harness.

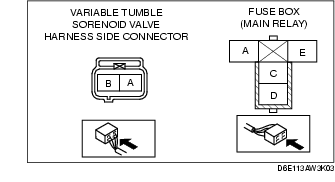

- Variable tumble solenoid valve terminal B and PCM terminal 2I

- Variable tumble solenoid valve terminal A and main relay terminal C

Short circuit

• If there is continuity, the circuit is shorted. Repair or replace the harness.

- Variable tumble solenoid valve terminal B and body GND

- Variable tumble solenoid valve terminal A and power supply
