EGR VALVE INSPECTION [L8, LF, L3]

Operation Test

1. Carry out the "EGR Control Inspection". (See ENGINE CONTROL SYSTEM OPERATION INSPECTION [L8, LF, L3].

• If not as specified, perform the further inspection for the EGR valve.

Resistance Inspection

Note

• Perform the following test only when directed.

1. Disconnect the negative battery cable.

2. Inspect resistance of the EGR valve coils.

• If not as specified, replace the EGR valve.

• If as specified, carry out the "Circuit Open/Short Inspection".

Circuit Open/Short Inspection

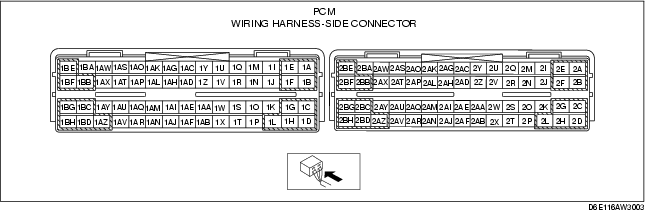

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L8, LF, L3].)

2. Inspect the following wiring harness for open or short (continuity check).

• If there is no continuity, the circuit is open. Repair or replace the harness.

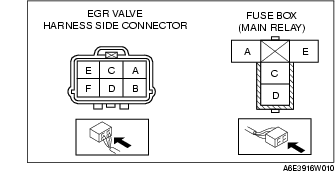

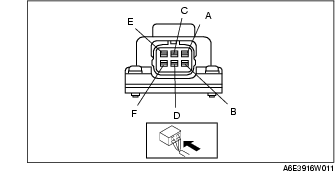

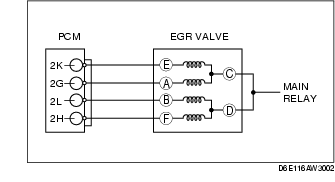

- EGR valve terminal E (harness-side) and PCM terminal 2K

- EGR valve terminal A (harness-side) and PCM terminal 2G

- EGR valve terminal B (harness-side) and PCM terminal 2L

- EGR valve terminal F (harness-side) and PCM terminal 2H

- EGR valve terminal C or D (harness-side) and main relay terminal C (harness-side)

• If there is continuity, the circuit is shorted. Repair or replace the harness.

- EGR valve terminal E (harness-side) and GND

- EGR valve terminal A (harness-side) and GND

- EGR valve terminal B (harness-side) and GND

- EGR valve terminal F (harness-side) and GND

- EGR valve terminal C or D (harness-side) and power supply

3. Remove the EGR valve, and inspect for any damage or clogging.

• If there is no damage or no clogging, replace the EGR valve.
