EGR VALVE INSPECTION [L3 Turbo]
EGR VALVE INSPECTION [L3 Turbo]
id0116b4801100
Resistance Inspection
-
Note
-
• Perform the following test only when directed.
1. Disconnect the negative battery cable.

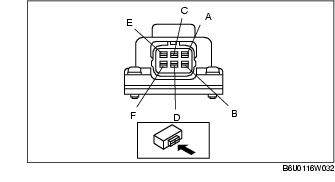

2. Inspect resistance of the EGR valve coils.
-
• If not as specified, replace the EGR valve.
-
• If as specified, carry out the "Circuit Open/Short Inspection".
|
Terminals
|
Resistance (ohm)
|
|
C-E
C-A
D-B
D-F
|
8-9
|
Circuit Open/Short Inspection

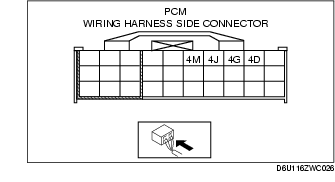

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3 Turbo].)

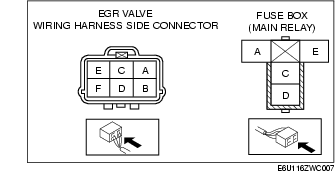

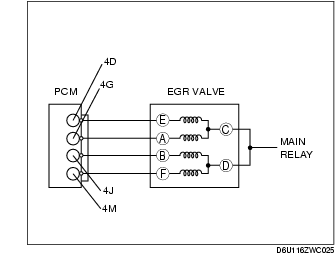

2. Inspect the following wiring harnesses for open or short circuit (continuity check).
Open circuit
-
• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
-
- EGR valve terminal E and PCM terminal 4D
-
- EGR valve terminal A and PCM terminal 4G
-
- EGR valve terminal B and PCM terminal 4J
-
- EGR valve terminal F and PCM terminal 4M
-
- EGR valve terminal C or D and main relay terminal C
Short circuit
-
• If there is continuity, there is a short circuit. Repair or replace the wiring harness.
-
- EGR valve terminal E and Ground
-
- EGR valve terminal A and Ground
-
- EGR valve terminal B and Ground
-
- EGR valve terminal F and Ground
-
- EGR valve terminal C or D and power supply
3. Remove the EGR valve, and inspect for any damage or clogging.
-
• If there is no damage or clogging, replace the EGR valve.
