ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [L8, LF, L3]
ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [L8, LF, L3]
id0140a5802000
-
Note
-
• Perform the following inspection only when directed.
ECT Sensor Resistance Inspection
1. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS [L8, LF, L3, L3 Turbo].)
2. Remove the ECT sensor (located above the starter).
3. Place the ECT sensor in water with a thermometer, and heat the water gradually.
4. Measure the resistance between the ECT sensor terminals A and B using an ohmmeter.
-
• If not as specified, replace the ECT sensor.
-
• If the ECT sensor is okay, but ECT PID value is out of specification, perform the "Circuit Open/Short Inspection".
Specification
|
Water temperature (°C {°F})
|
Resistance (kilohms)
|
|
20 {68}
|
35.48-39.20
|
|
70 {158}
|
5.07-5.60
|
|
80 {176}
|
3.65-4.02
|
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L8, LF, L3].)
2. Inspect the following wiring harnesses for open or short. (Continuity check)
Open circuit
-
• If there is no continuity, the circuit is open. Repair or replace the harness.
-

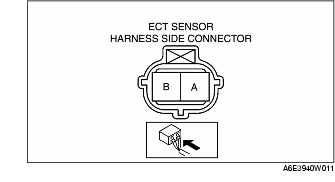

- ECT sensor terminal A and PCM terminal 2AH
-
- ECT sensor terminal B and PCM terminal 2AY
Short circuit
-
• If there is continuity, the circuit is shorted. Repair or replace the harness.
-
- ECT sensor terminal A and power supply
-
- ECT sensor terminal A and body GND
-
- ECT sensor terminal B and power supply
