INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [L8, LF, L3]
INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [L8, LF, L3]
id0140a5802200
Resistance Inspection
-
Note
-
• Perform the following inspection only when directed.
1. Disconnect MAF/IAT sensor.

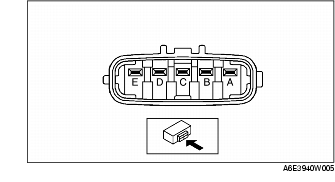

2. Measure the resistance between the MAF/IAT sensor terminals D and E using an ohmmeter.
-
• If not as specified, replace the MAF/IAT sensor.
-
• If the MAF/IAT sensor is okay, but the IAT PID are out of specification, perform the "Circuit Open/Short Inspection".
Specification
|
Ambient temperature (°C {°F})
|
Resistance (kilohm)
|
|
-20 {-4}
|
13.6-18.4
|
|
20 {68}
|
2.21-2.69
|
|
60 {140}
|
0.493-0.667
|
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L8, LF, L3].)

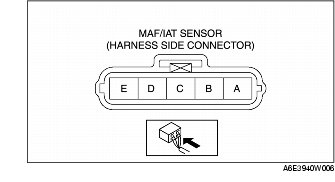

2. Inspect the following wiring harnesses for open or short. (Continuity check)
Open circuit
-
• If there is no continuity, the circuit is open. Repair or replace the harness.
-
- MAF/IAT sensor terminal D and PCM terminal 1AT
-
- MAF/IAT sensor terminal E and PCM terminal 1AR
Short circuit
-
• If there is continuity, the circuit is shorted. Repair or replace the harness.
-
- MAF/IAT sensor terminal E and power supply
-
- MAF/IAT sensor terminal D and power supply
-
- MAF/IAT sensor terminal D and body GND
